G Sensor Removal and Installation (4WD Model)

G Sensor Removal and Installation (4WD Model)

CAUTION:
^ Do not drop and shock G sensor. It will affect its original performance.
^ Regarding G sensor removal and installation, confirm specified torque and use hand tool to avoid damage.

Removal
1. Disconnect negative (-) cable from battery.
2. Remove center console box.

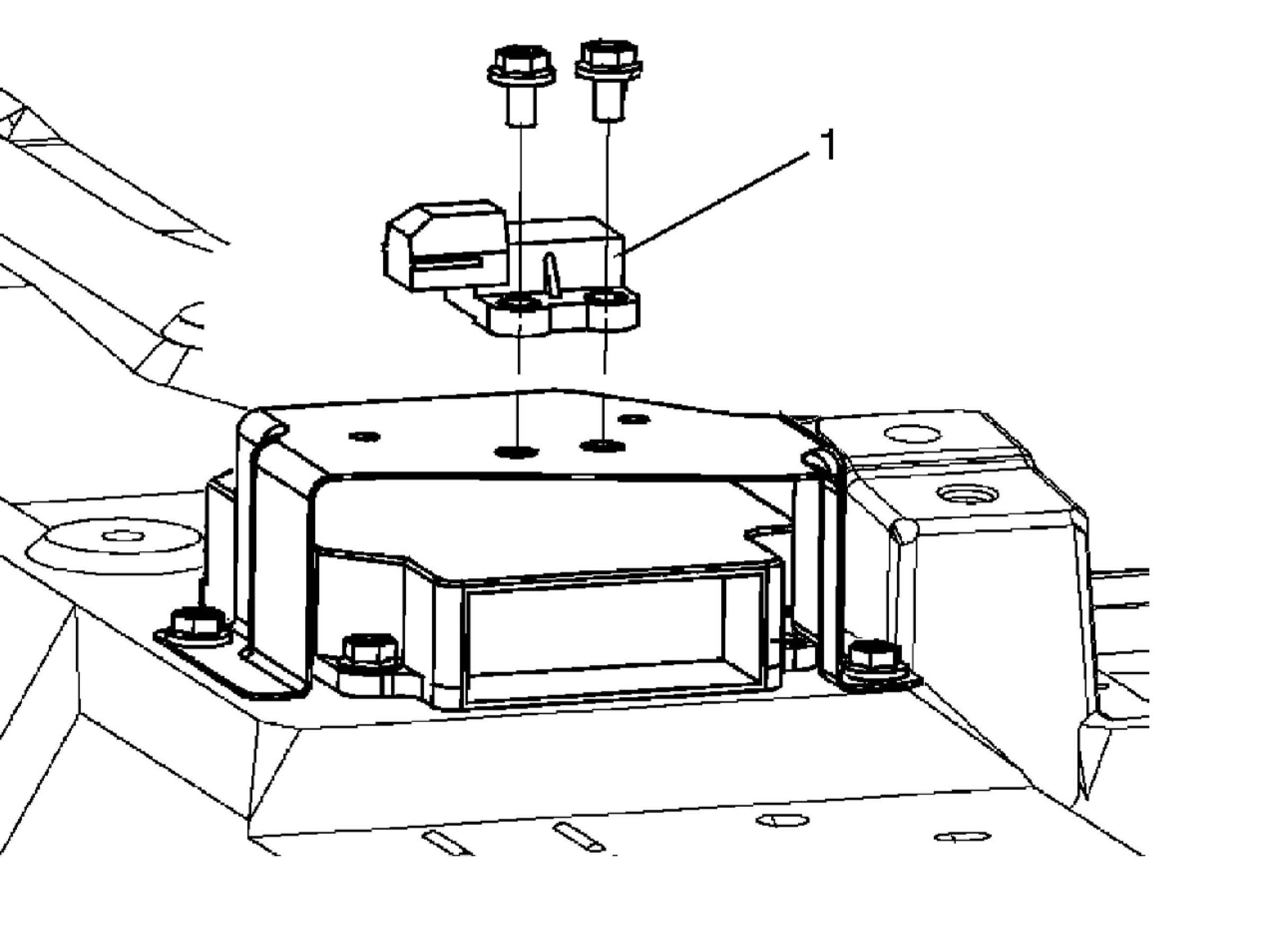

3. Disconnect G sensor connector, and remove G sensor (1).





Installation

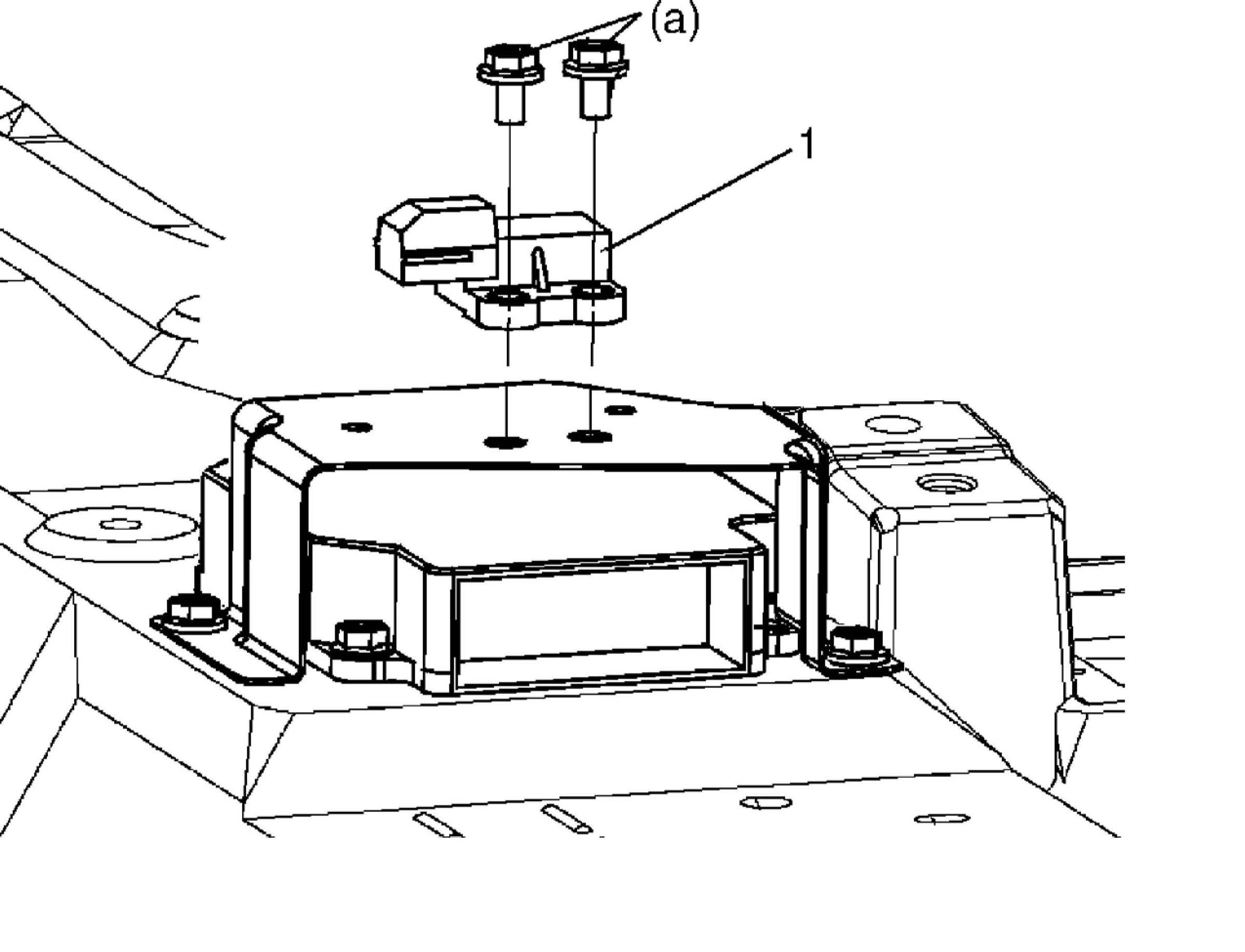

1. Install G sensor (1), and connect G sensor connector.

Tightening torque
G sensor bolt a: 3.0 Nm (0.3 kgf-m, 2.2 ft. lbs.)





2. Install center console box.
3. Connect negative cable to battery.
