Serial Data Link Circuit Check
Serial Data Link Circuit Check

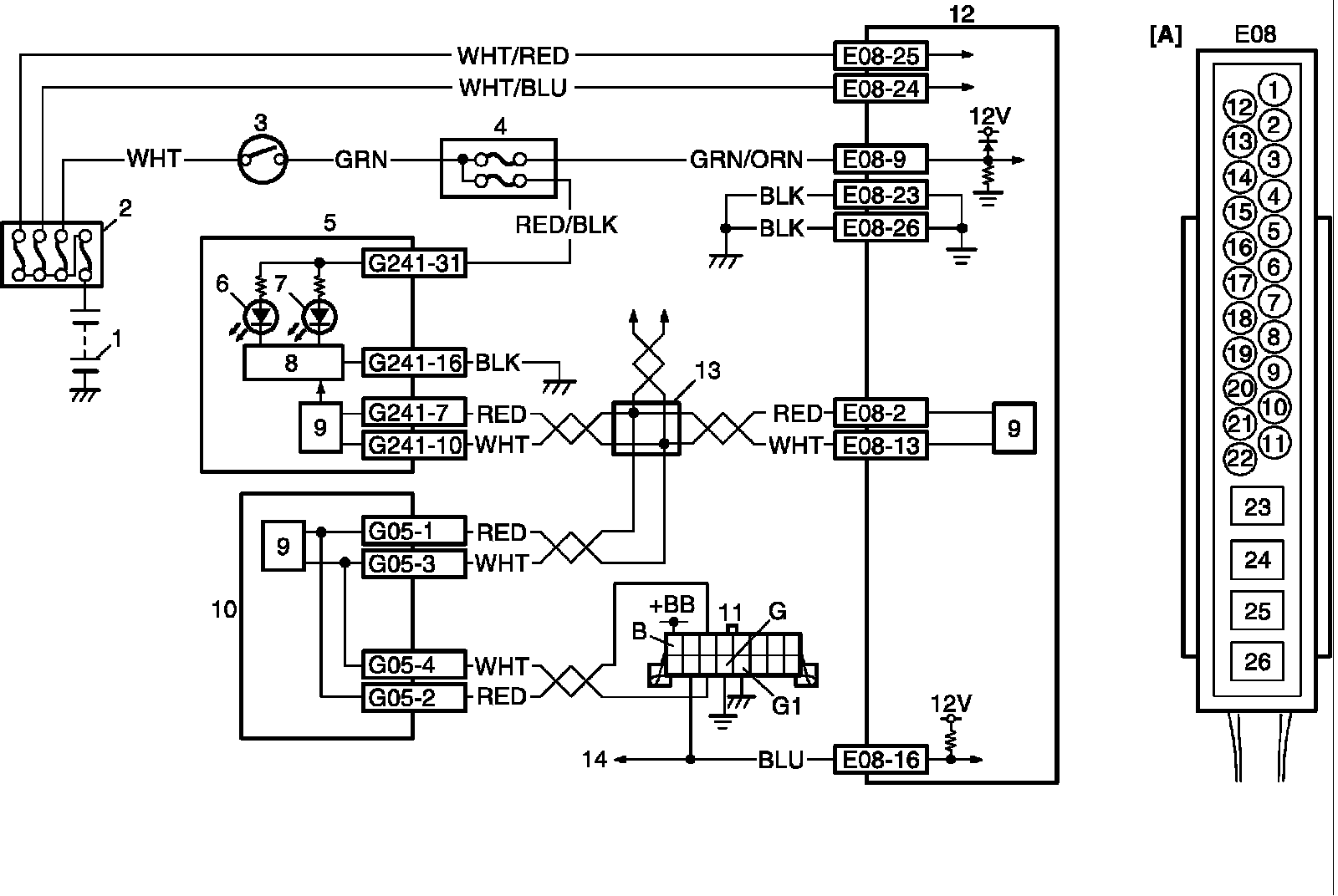

Wiring Diagram
Trouble shooting
Step 1:

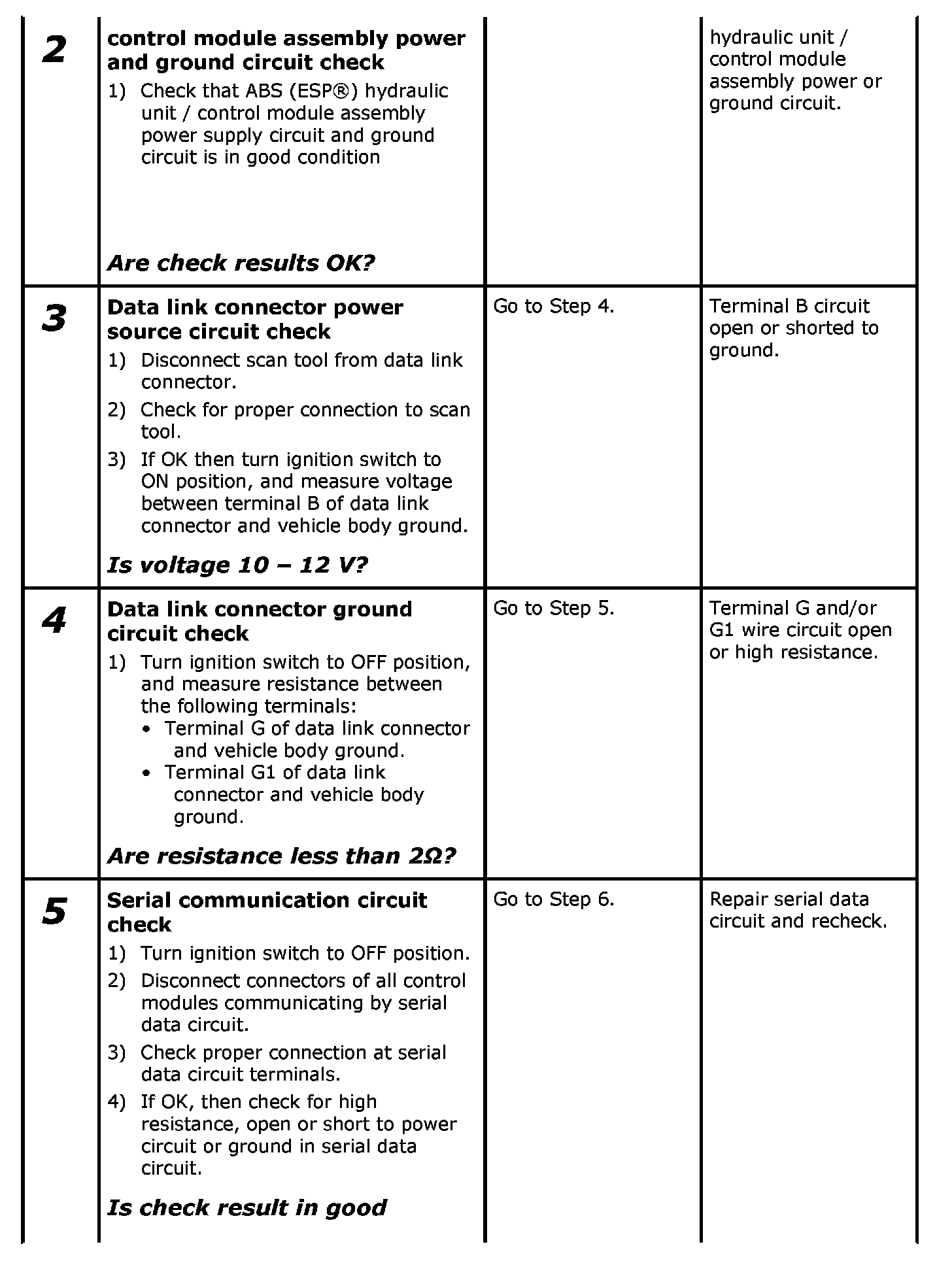

STEP 2-Step 5:
Step 6:
