ESP(R) Off Switch Removal and Installation

ESP(R) OFF Switch Removal and Installation

Removal
1. Disconnect negative (-) cable at battery.
2. Remove rear console box.
3. Disconnect ESP(R) OFF switch coupler.

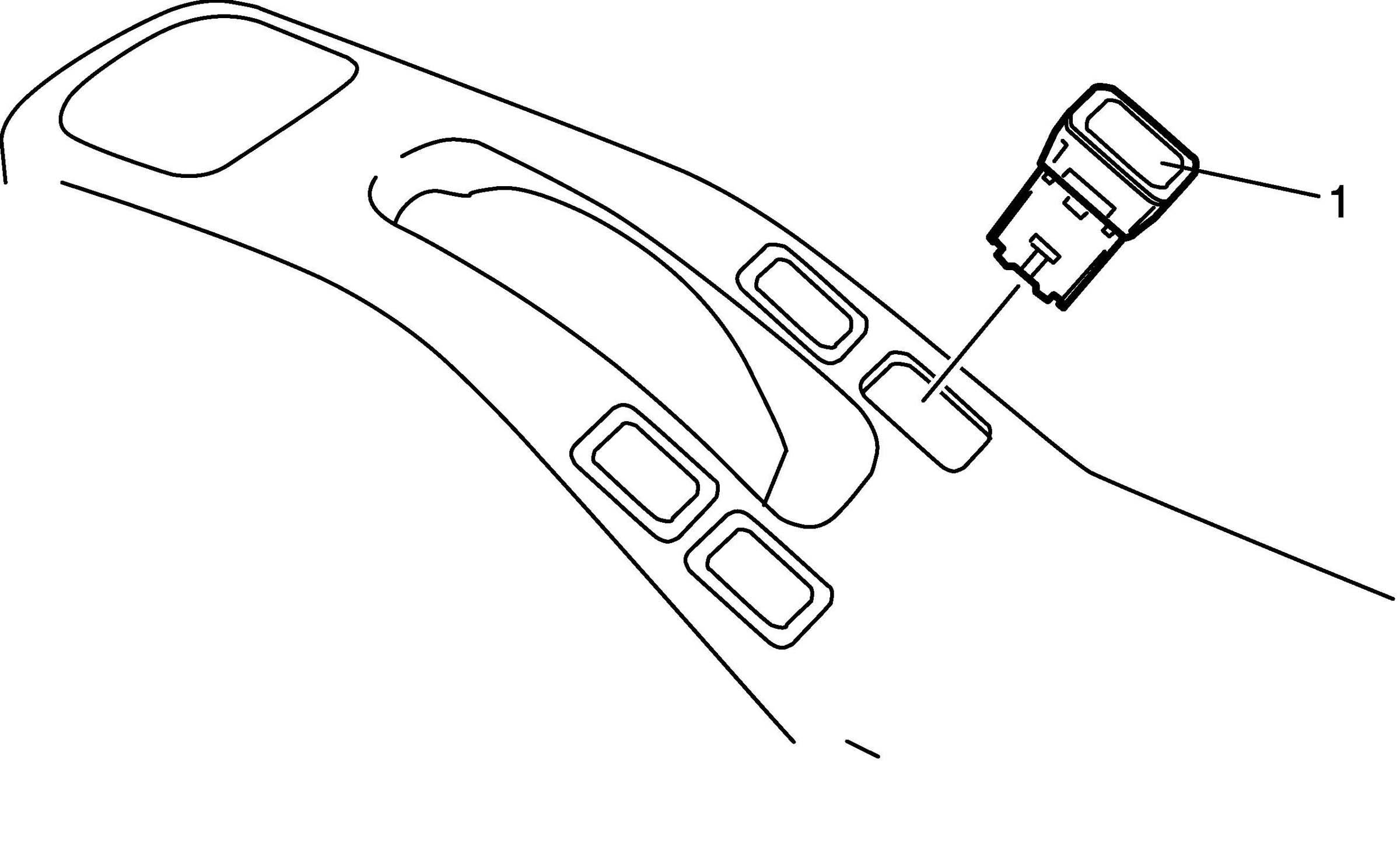

4. Remove ESP(R) OFF switch (1) from rear console box (2).





Installation

Reverse removal procedure.
