Hood: Service and Repair
HOOD REMOVAL AND INSTALLATIONRemoval
CAUTION: Place cloth to prevent body from any damage.

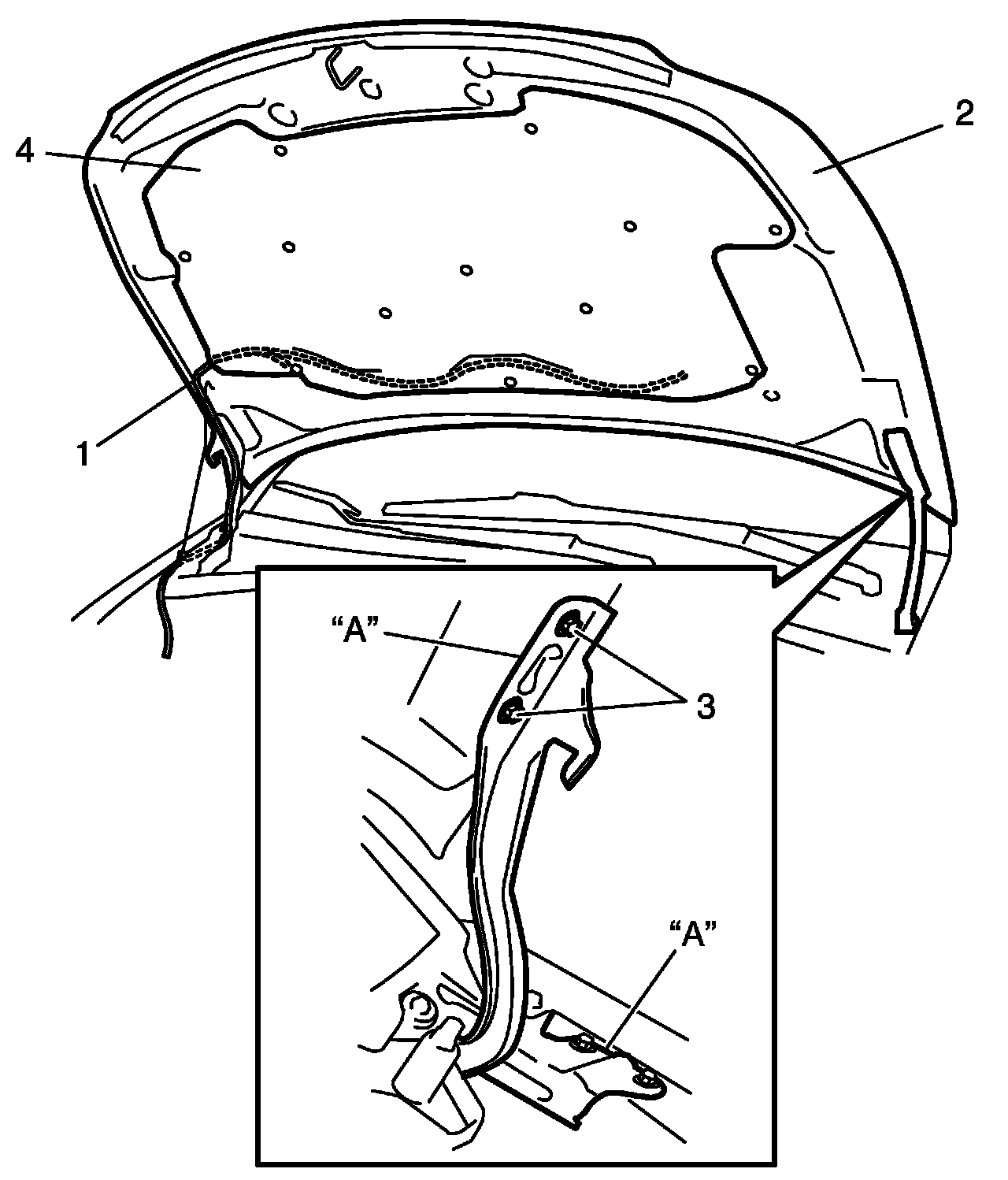

1. Remove hood silencer (4).
2. Disconnect window washer hose (1) from hood.
3. Remove 4 mounting bolts (3) to detach hood (2).
Installation
Reference: Hood Inspection and Adjustment
Reverse removal procedure noting the following.
^ Apply sealant to contact face "A" of hood hinge.
Specified sealant.
"A" : Sealant 99000 31110 (SUZUKI Bond No.1215)
^ Adjust hood lock position if necessary referring to Hood Inspection and Adjustment.
