Front Bumper and Rear Bumper Components

FRONT BUMPER AND REAR BUMPER COMPONENTS

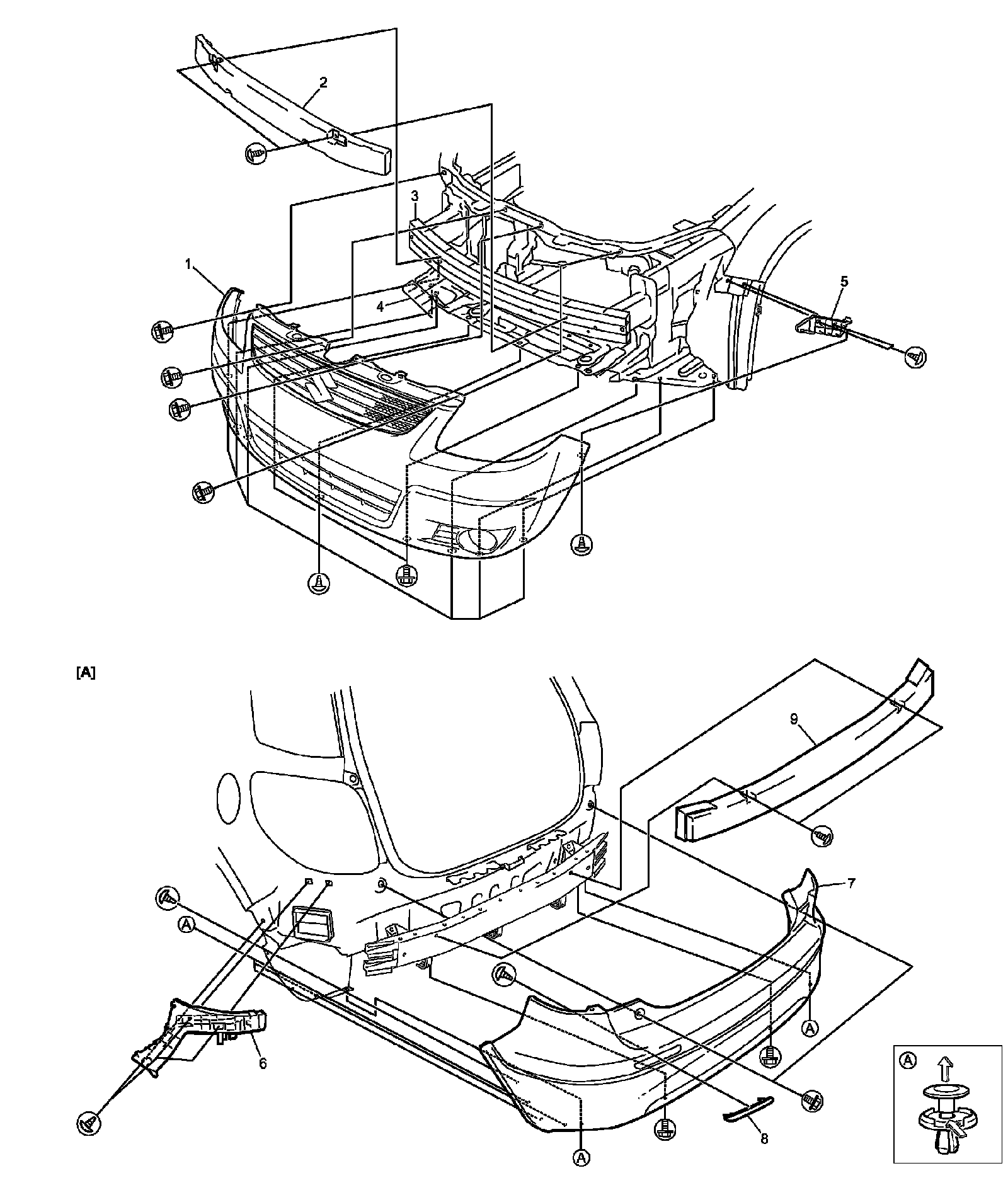

Front Bumper and Rear Bumper Components (Part 1):

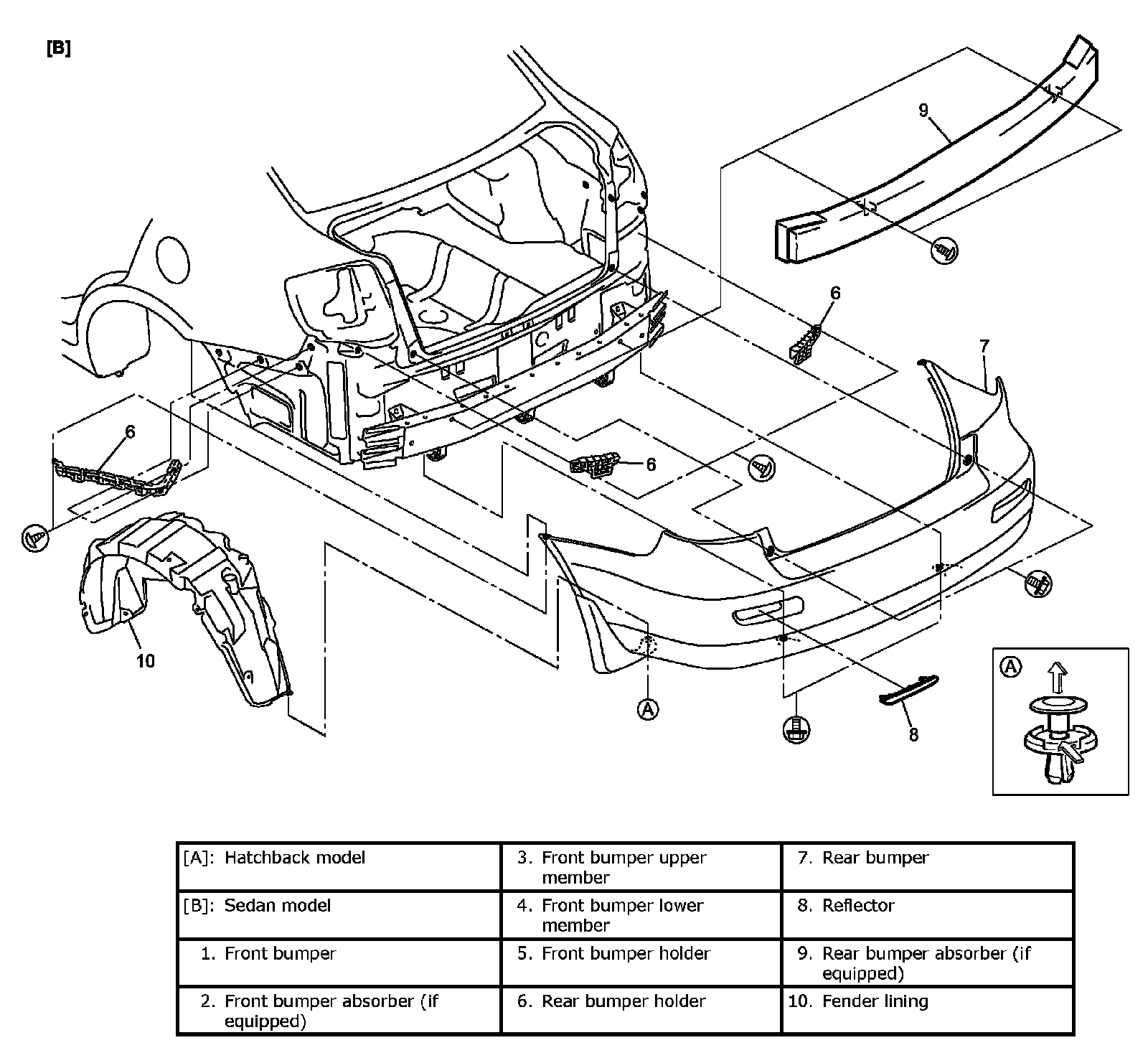

Front Bumper and Rear Bumper Components (Part 2):
