Fail-Safe Table

Fail-Safe Table

When any of the following malfunctions (DTCs) is detected, fail-safe mode is activated. However, when HVAC control module detects normal operation of A/C system, fail-safe mode is canceled.

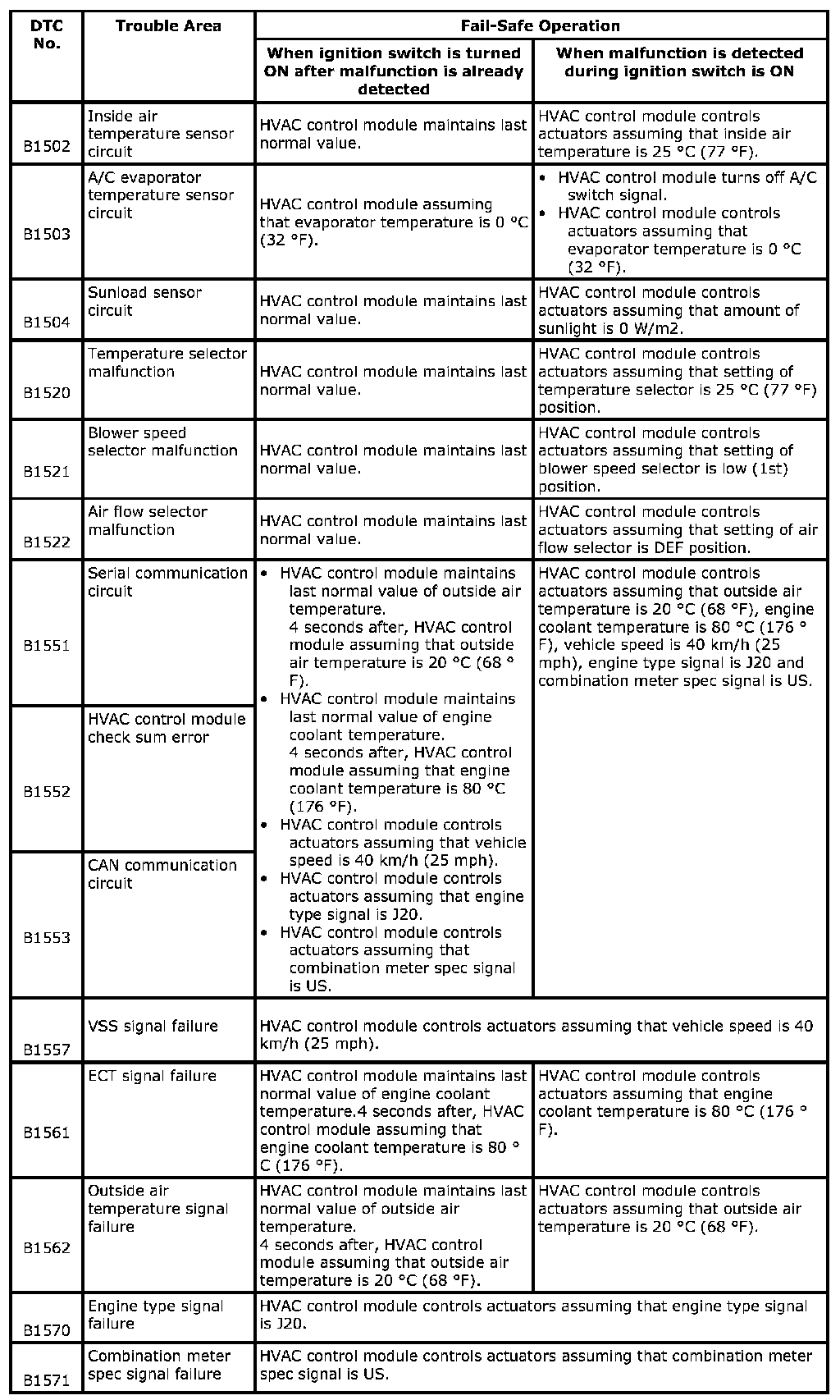

B1502-B1571:
