C1253

DTC C1253: Coupling Assembly Circuit Short

Wiring Diagram








DTC Detecting Condition and Trouble Area





DTC Confirmation Procedure
1. Clear DTC using scan tool.
2. Start engine and select 2WD/4WD switch to "LOCK" position.
3. Keep engine running at 2000 rpm for 10 seconds. or more.
4. Stop engine and check DTC.

Troubleshooting

Step 1:

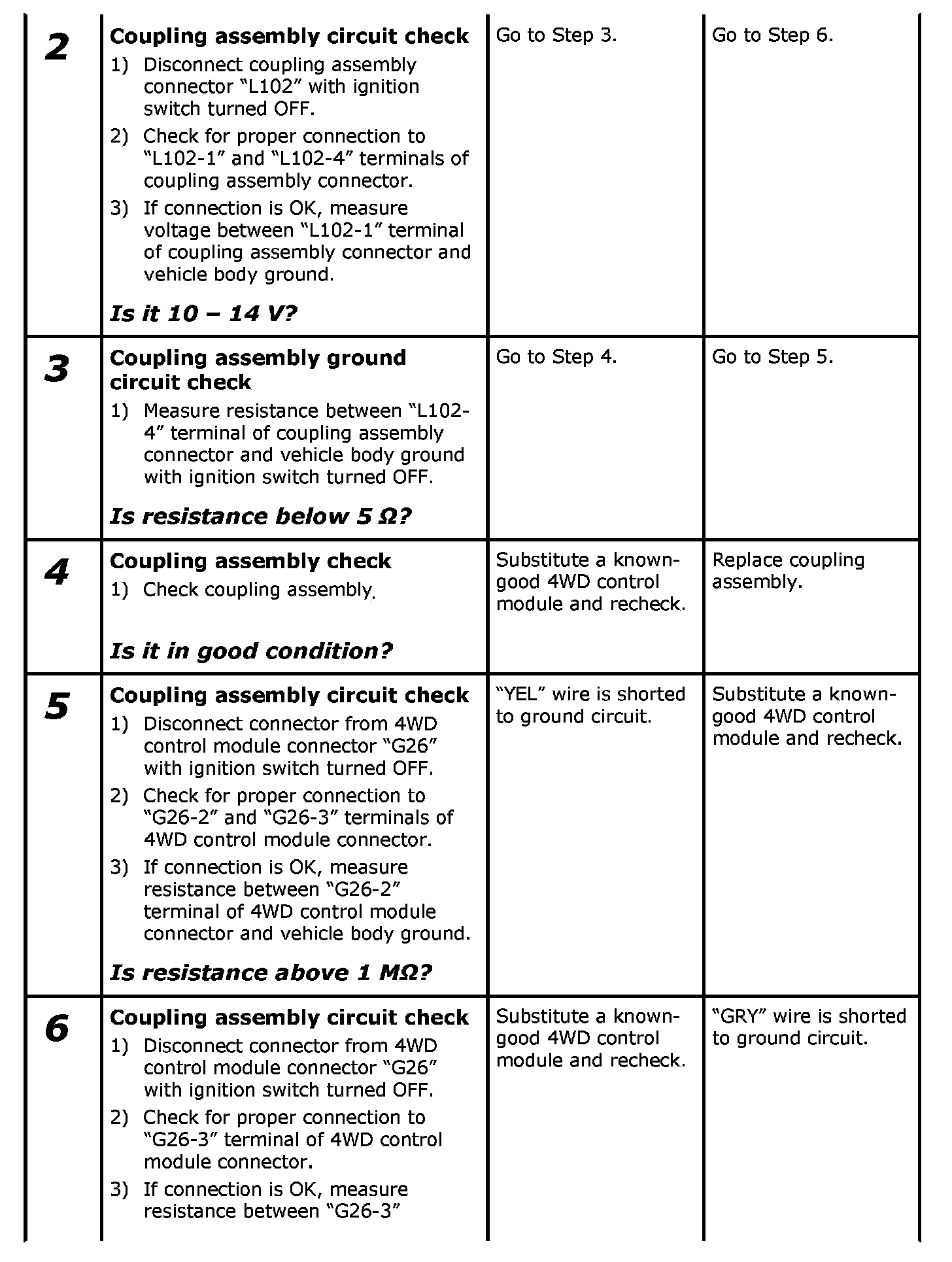

Step 2-Step 6:
