C1250

DTC C1250: Coupling Air Temperature Sensor Circuit Open

Wiring Diagram








DTC Detecting Condition and Trouble Area





DTC Confirmation Procedure
1. Clear DTC using scan tool.
2. Turn ignition switch to ON position for 10 seconds.
3. Check DTC.

Troubleshooting

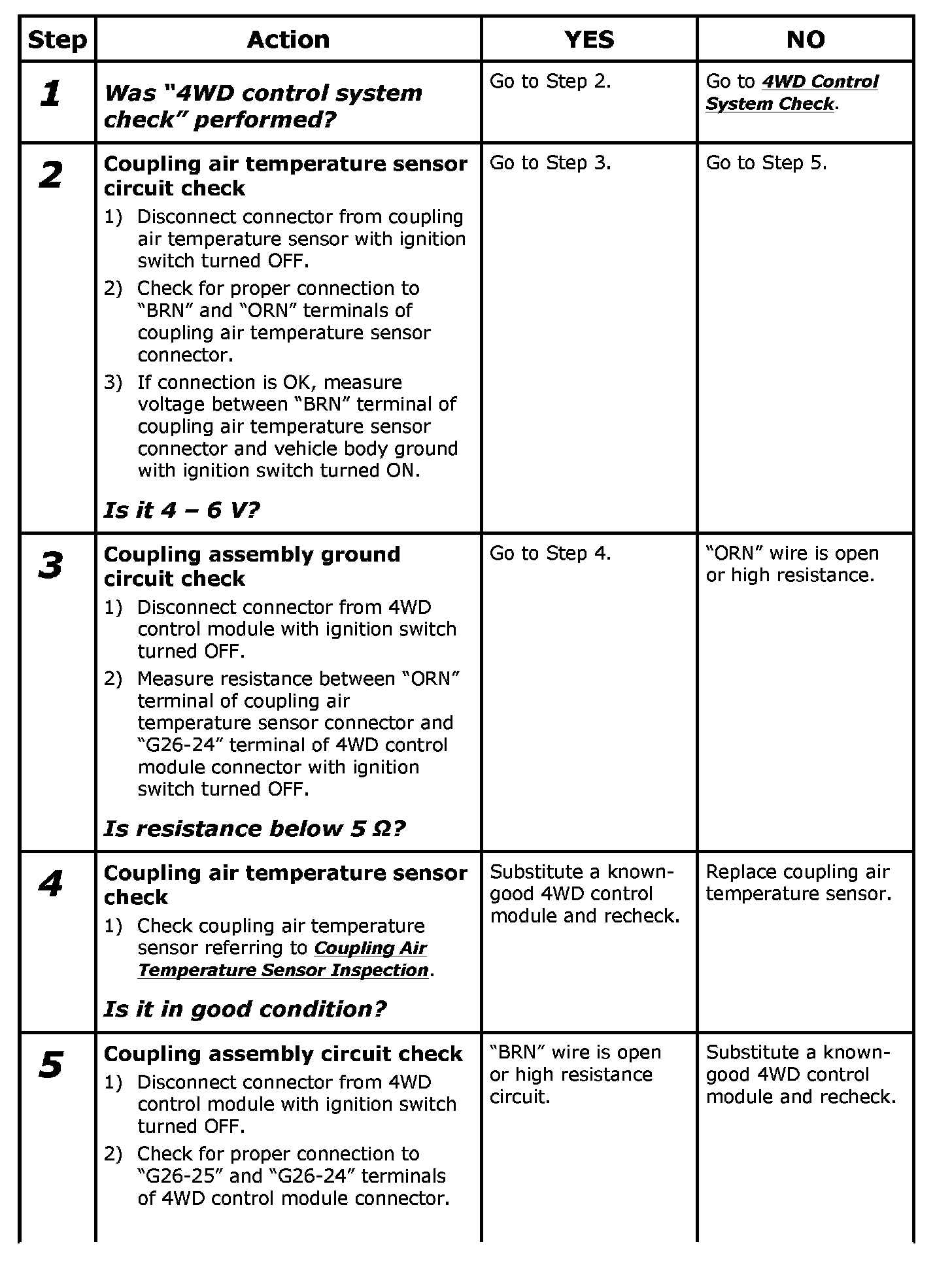

Step 1-Step 5:
