C1122

DTC C1122: Engine Speed Signal

Wiring Diagram








DTC Detecting Condition and Trouble Area

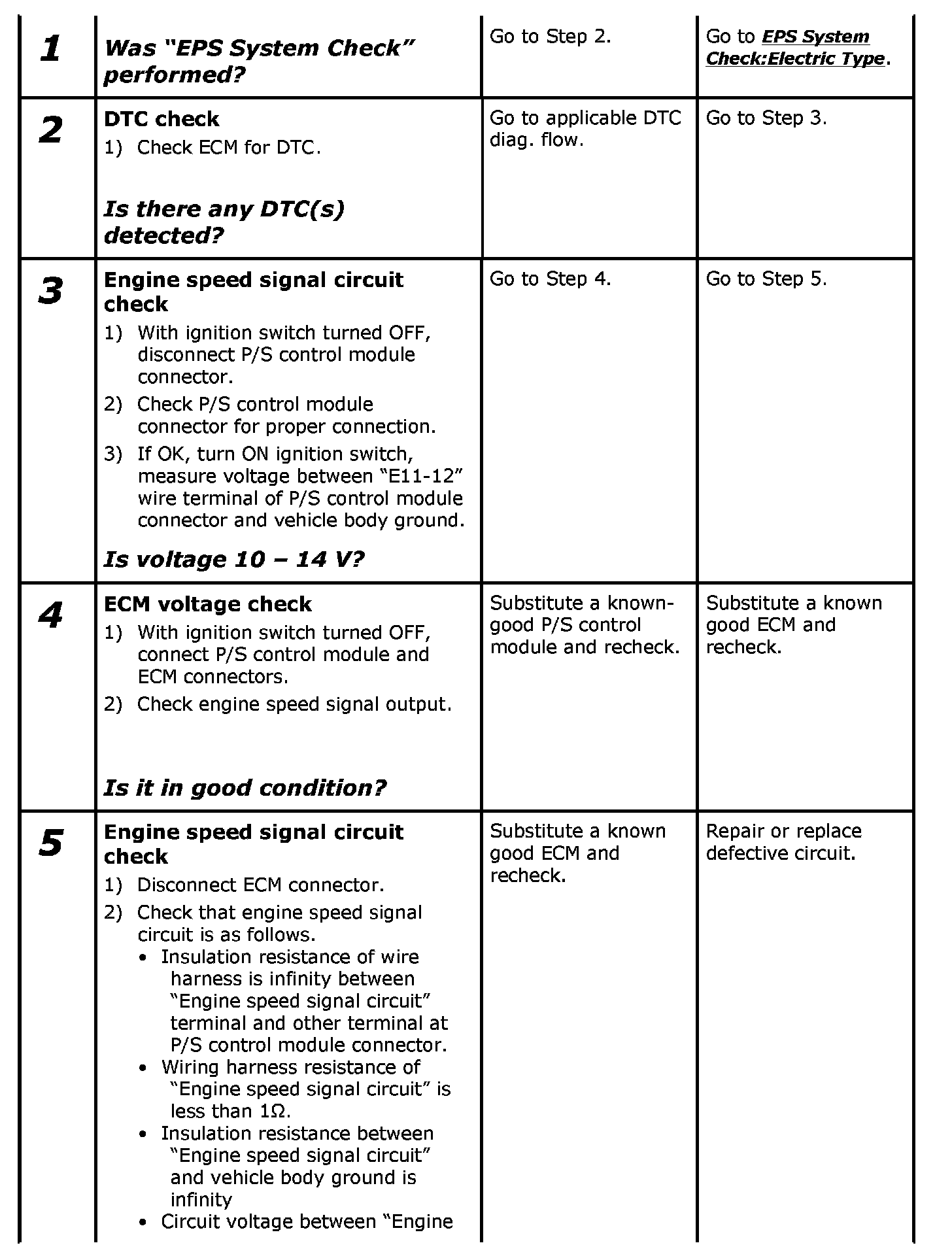

DTC Troubleshooting




Step 1-Step 5:
