ESP

DTC C1016: Brake Light Switch

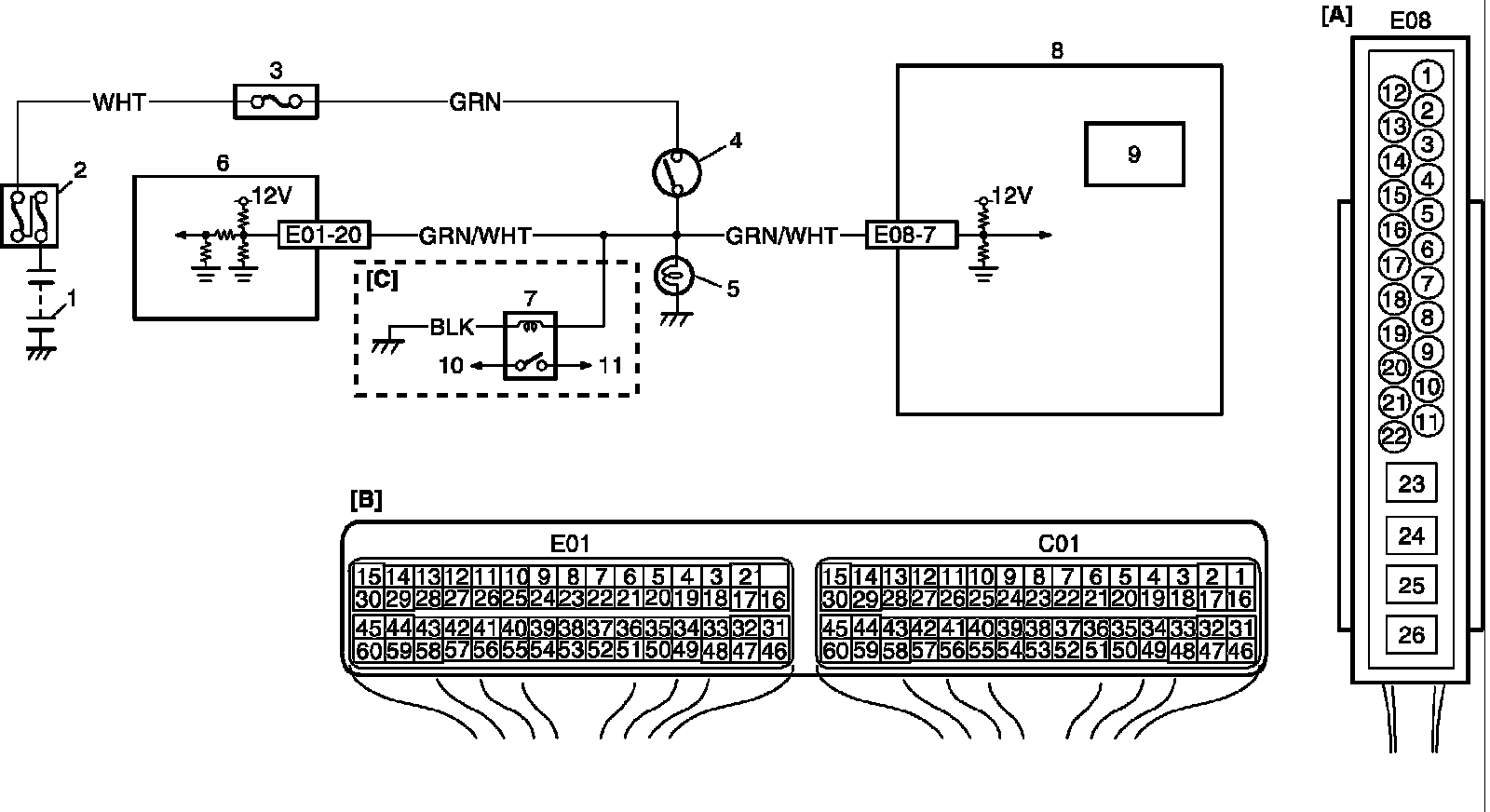

Wiring Diagram








DTC Detecting Condition and Trouble Area





DTC Troubleshooting

Step 1:

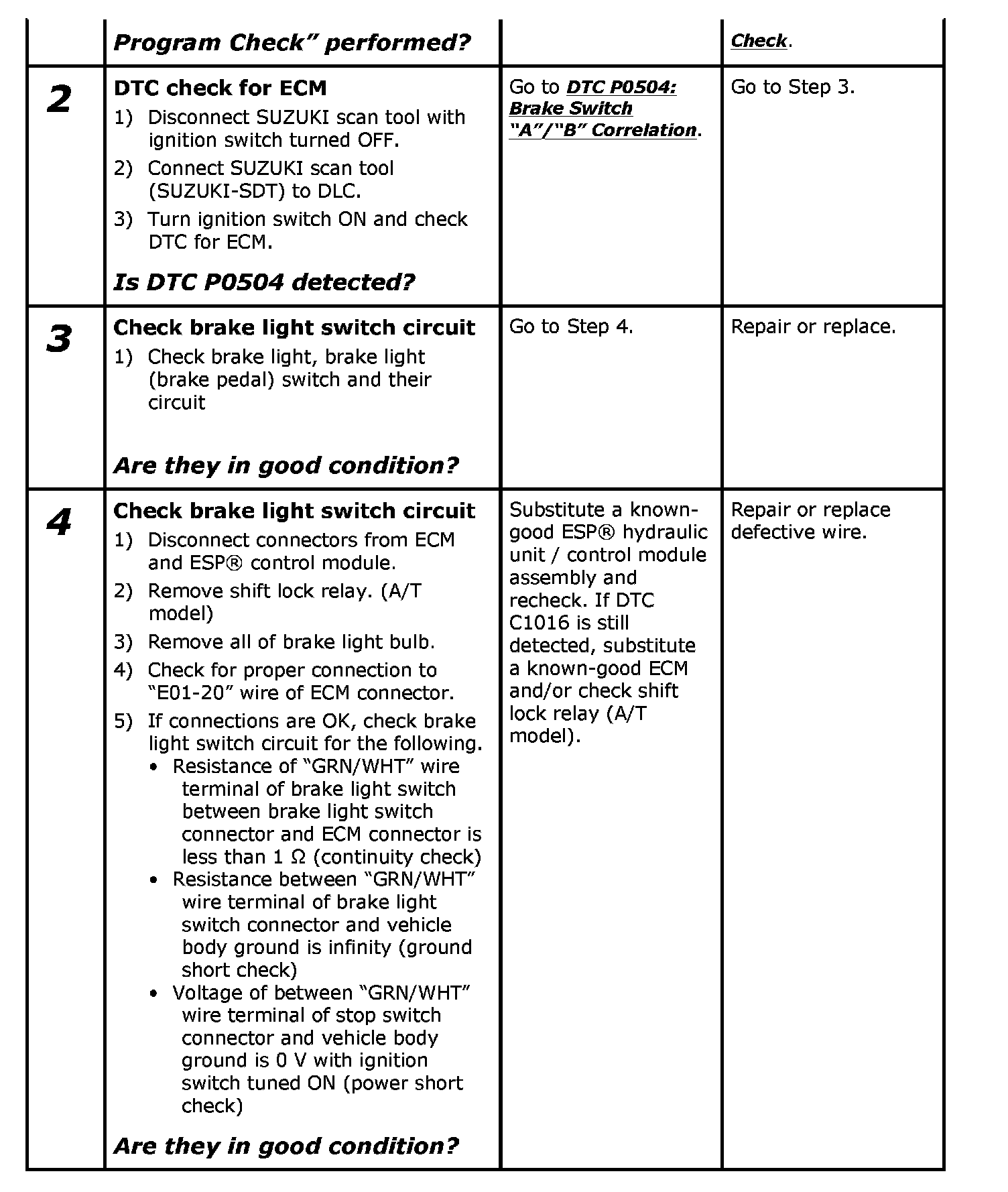

Step 2-Step 4:
