Magnet Clutch Components

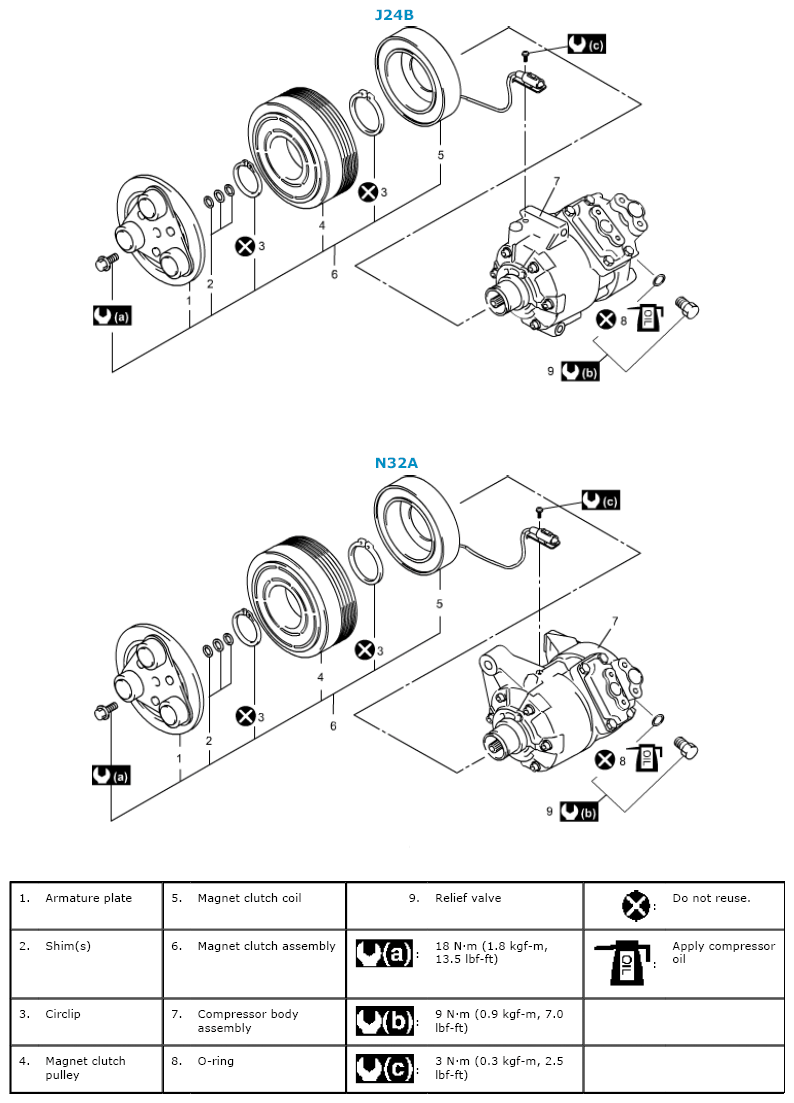

Fig 1: Identifying Magnet Clutch Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
