Fuel Tank Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Relieve fuel pressure in fuel feed line, see Fuel Pressure Relief Procedure .
Disconnect negative cable from battery.
Remove fuel filler cap.
Insert hose of a hand operated pump into fuel filler hose (1) and drain fuel in space "A" as shown in figure.
CAUTION: Do not force pump hose into fuel tank, or pump hose may damage of fuel tank inlet valve (2).

Fig 1: Inserting Hose Of Hand Operated Pump Into Fuel Filler Hose
Courtesy of SUZUKI OF AMERICA CORP.
Remove propeller shaft, see PROPELLER SHAFT REMOVAL AND INSTALLATION .
Remove exhaust center pipe, see EXHAUST PIPE AND MUFFLER REMOVAL AND INSTALLATION .
With parking brake cable connected, remove parking brake cable bolt and nut, see PARKING BRAKE CABLE LOCATION .
Remove rear fender lining.

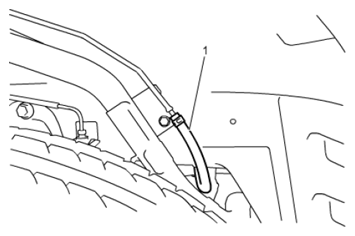

Remove breather hose (1) from fuel filler neck.

Fig 2: Removing Breather Hose
Courtesy of SUZUKI OF AMERICA CORP.

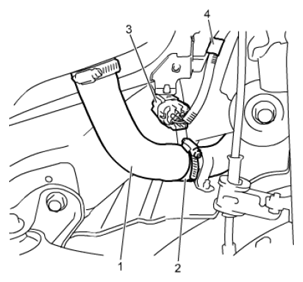

Remove clamps (2) and fuel filler hose (1) from fuel filler neck.
Remove fuel pump wire connector (3), and remove clamp (4) from bracket.

Fig 3: Identifying Fuel Pump Wire Connector, Clamp And Fuel Filler Hose
Courtesy of SUZUKI OF AMERICA CORP.
Drain fuel from fuel tank.
CAUTION: Never store fuel in an open container due to possibility of fire or explosion.

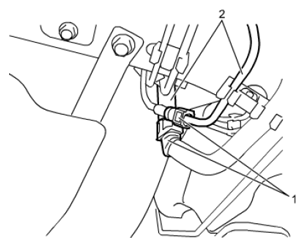

Disconnect quick joints (1) from fuel pipes (2), see FUEL HOSE DISCONNECTING AND RECONNECTING .

Fig 4: Identifying Quick Joints And Fuel Pipes
Courtesy of SUZUKI OF AMERICA CORP.
Support fuel tank (1) with jack (2) and remove fuel tank.

Fig 5: Supporting Fuel Tank With Jack
Courtesy of SUZUKI OF AMERICA CORP.
