Fuel Tank Removal and Installation: Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION:

When connecting joint, clean outside surfaces of pipe where joint is to be connected, push joint into pipe till joint lock clicks and check to ensure that pipes are connected securely, or fuel leak may occur.

Raise fuel tank (1) with jack (2) and install fuel tank to vehicle.
Tightening torque

Fuel tank bolt (a): 45 N.m (4.6 kg-m, 33.5 lbf-ft)

Fig 1: Raising Fuel Tank With Jack
Courtesy of SUZUKI OF AMERICA CORP.
Connect fuel feed hose (1) and vapor hose (2) to each pipe as shown in figure.

Fig 2: Identifying Fuel Feed Hose
Courtesy of SUZUKI OF AMERICA CORP.
Connect fuel pump wire connector (3), and install fuel pump wire to bracket (2).
Connect fuel filler hose (1) to filler neck (3) as shown in figure, and tighten fuel filler hose clamp to specified torque.
Tightening torque

Fuel filler hose clamp (a): 1.5 N.m (0.15 kg-m, 1.5 lbf-ft)

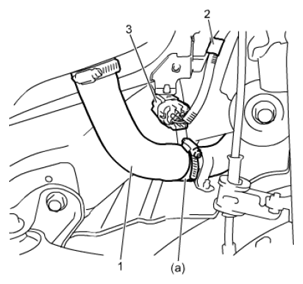

Fig 3: Identifying Fuel Pump Wire Connector And Filler Neck
Courtesy of SUZUKI OF AMERICA CORP.
Connect breather hose (1), see FUEL HOSE DISCONNECTING AND RECONNECTING .

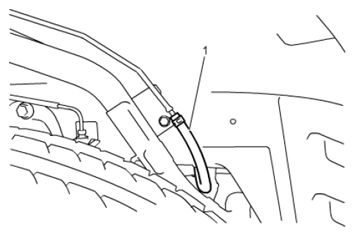

Fig 4: Connecting Breather Hose
Courtesy of SUZUKI OF AMERICA CORP.
Install rear fender lining.
Install parking brake cable bolt and nut, see PARKING BRAKE CABLE LOCATION .
Install exhaust center pipe, see EXHAUST PIPE AND MUFFLER REMOVAL AND INSTALLATION .
Install propeller shaft, see PROPELLER SHAFT REMOVAL AND INSTALLATION .
Connect negative cable to battery.
Check fuel leaks, see Fuel Leakage Check Procedure .
