Fuel System Components

WARNING: This page is about a different variant/trim than selected.

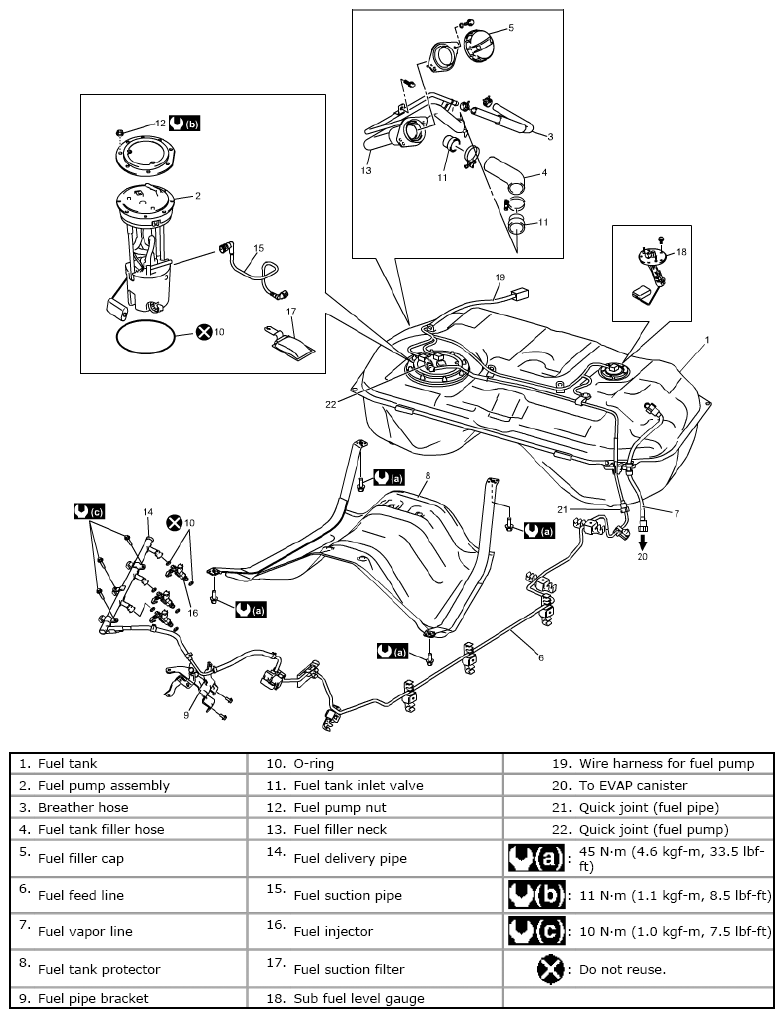

Fig 1: Identifying Fuel System Components
G06493455Courtesy of SUZUKI OF AMERICA CORP.
