Fuel Pump Assembly Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Remove fuel tank from vehicle, see Fuel Tank Removal and Installation .
Disconnect fuel pipe (1) from fuel pump assembly (2), see FUEL HOSE DISCONNECTING AND RECONNECTING .
Disconnect fuel pump connector (3) from fuel pump.

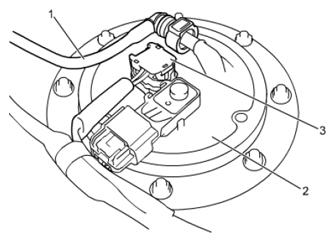

Fig 1: Identifying Fuel Pump Connector And Fuel Pipe
Courtesy of SUZUKI OF AMERICA CORP.
Remove fuel suction pipe (1) from fuel pump, see FUEL HOSE DISCONNECTING AND RECONNECTING .

Fig 2: Identifying Fuel Suction Pipe
Courtesy of SUZUKI OF AMERICA CORP.
Remove fuel pump assembly (1) and O-ring (2) from fuel tank.

Fig 3: Identifying Fuel Pump Assembly And O-ring
Courtesy of SUZUKI OF AMERICA CORP.
