Fuel Injector Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Relieve fuel pressure, see Fuel Pressure Relief Procedure .
  2. Disconnect negative cable from battery.
  3. Remove intake upper manifold, see INTAKE MANIFOLD REMOVAL AND INSTALLATION .
  4. Disconnect fuel injector connectors.
  5. Disconnect fuel feed hose (4) from fuel delivery pipe (1).
  6. Remove fuel delivery pipe bolts (2).
  7. Remove clip(s) (5).
  8. Remove fuel injector(s) (3).

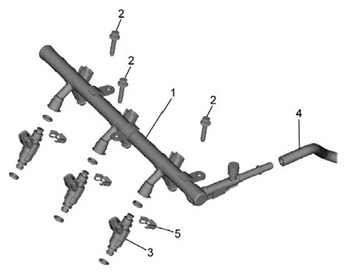

    Fig 1: Identifying Fuel Injector Components
    G06493465Courtesy of SUZUKI OF AMERICA CORP.
