Fuel Injector Circuit Check: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

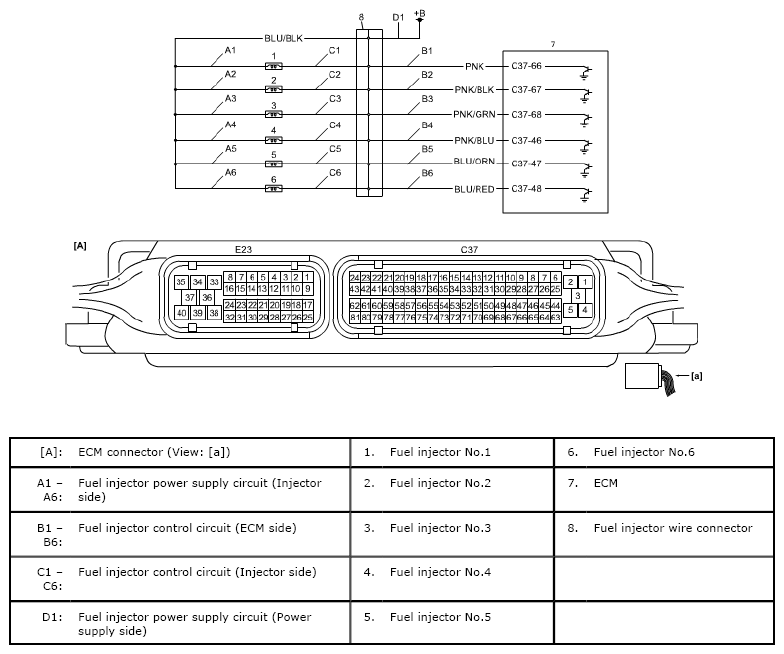

Fig 1: Identifying Fuel Injector - Wiring Diagram
G06493448Courtesy of SUZUKI OF AMERICA CORP.
