DTC P0962/P0966/P0970: Pressure Control Solenoid "A" Control Circuit Low/Pressure Control Solenoid "B" Control Circuit Low/Pressure Control Solenoid "C" Control Circuit Low: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

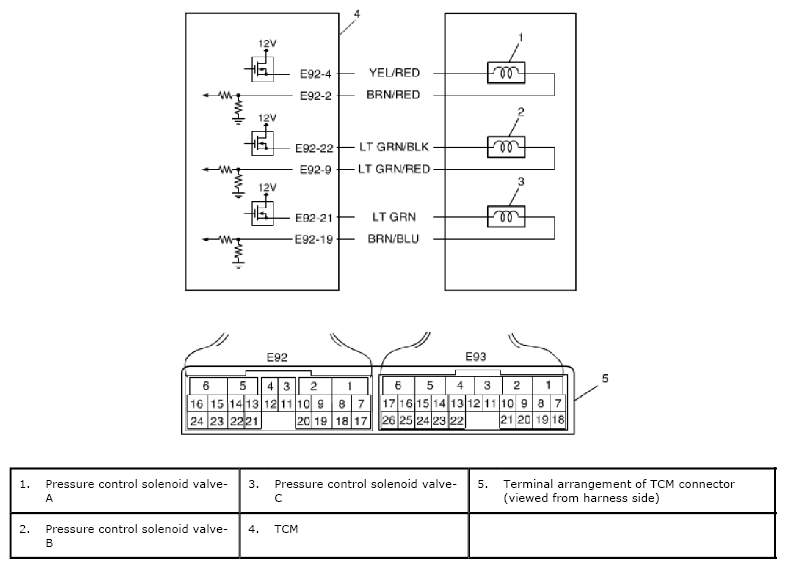

Fig 1: Pressure Control Solenoid A Control Circuit Low - Wiring Diagram
G06500060Courtesy of SUZUKI OF AMERICA CORP.
