Coolant Circulation

WARNING: This page is about a different variant/trim than selected.

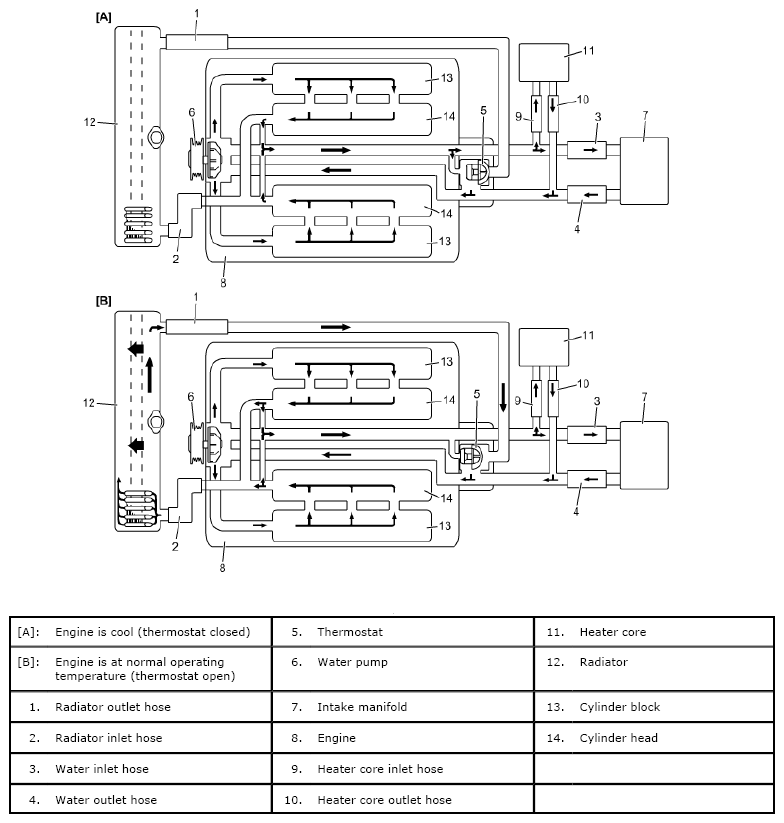

Fig 1: Coolant Circulation Schematic Diagram
G06493346Courtesy of SUZUKI OF AMERICA CORP.
