Thermostat Assembly Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Reverse removal procedure for installation noting the following.
- Use new gasket when installing thermostat assembly.

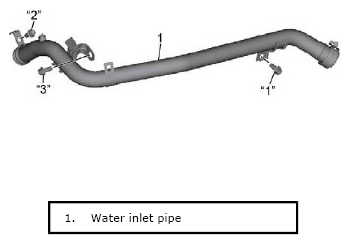

- Tighten water inlet pipe bolts in numerical order ("1" - "3") as shown figure.
- Refill cooling system referring to COOLING SYSTEM REFILLING .
- Verify that there is no coolant leakage at each connection.
