Radiator Cooling Fan Disassembly and Reassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove fans (1) from radiator cooling fan motors No. 1 and No. 2 (2).
Remove radiator cooling fan motors No. 1 and No. 2 from cooling fan shroud (3).

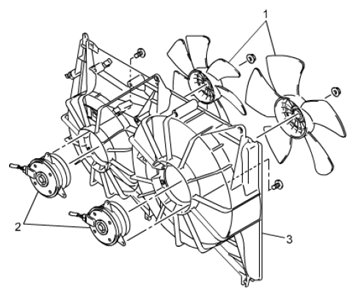

Fig 1: Identifying Radiator Cooling Fan Motors No. 1 And No. 2
Courtesy of SUZUKI OF AMERICA CORP.
