Radiator Cooling Fan Assembly Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect negative cable from battery.
Disconnect radiator cooling fan motor connectors (1).

Fig 1: Identifying Radiator Cooling Fan Motor Connectors
Courtesy of SUZUKI OF AMERICA CORP.
With hose connected, detach P/S reservoir tank (1) from its bracket.
Disconnect ground cable (2).
Remove reservoir tank (3) from radiator.

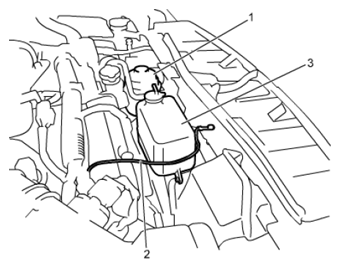

Fig 2: Identifying P/S Reservoir Tank, Ground Cable And Reservoir Tank
Courtesy of SUZUKI OF AMERICA CORP.
Remove air cleaner suction pipe. See AIR CLEANER ASSEMBLY REMOVAL AND INSTALLATION .
Remove radiator cooling fan assembly from radiator.
