Cooling System Components

WARNING: This page is about a different variant/trim than selected.
NOTE:

For water inlet pipe bolt tightening order, see THERMOSTAT ASSEMBLY REMOVAL AND INSTALLATION .

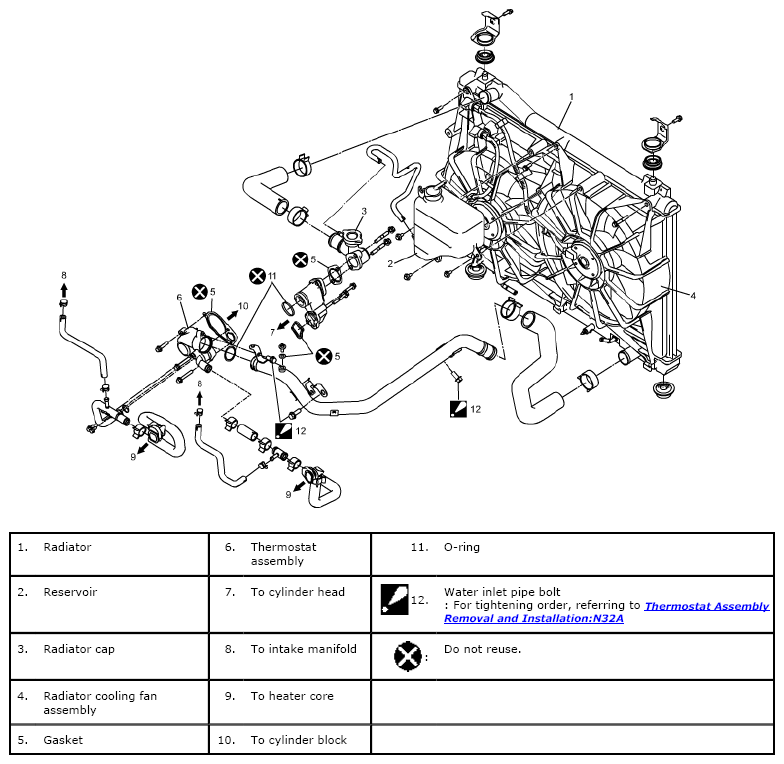

Fig 1: Identifying Cooling System Components
G06493348Courtesy of SUZUKI OF AMERICA CORP.
