Sensor Plate Inspection

Reference: MAIN BEARINGS, CRANKSHAFT AND CYLINDER BLOCK REMOVAL AND INSTALLATION

Check sensor plate (1) for crack or damage.

If defective condition is found, replace crankshaft (2).

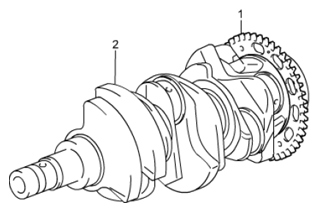

Fig 1: Identifying Sensor Plate And Crankshaft

Courtesy of SUZUKI OF AMERICA CORP.
