Piston, Piston Ring and Connecting Rod Disassembly and Reassembly: Disassembly

WARNING: This page is about a different variant/trim than selected.

Using piston ring expander, remove two compression rings (1st and 2nd) and oil ring from piston.
Remove piston pin from connecting rod as follows.
1. Ease out piston pin circlips (1), as shown.

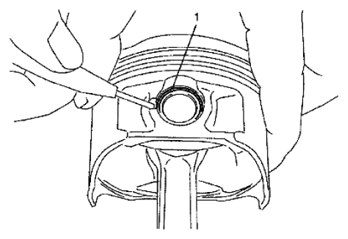

  Fig 1: Removing Piston Pin Circlips From Connecting Rod
  Courtesy of SUZUKI OF AMERICA CORP.
2. Force piston pin out.

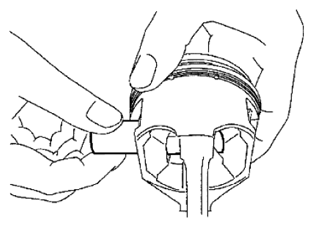

  Fig 2: Removing Piston Pin From Connecting Rod
  Courtesy of SUZUKI OF AMERICA CORP.
