Piston, Piston Ring and Connecting Rod Components

WARNING: This page is about a different variant/trim than selected.

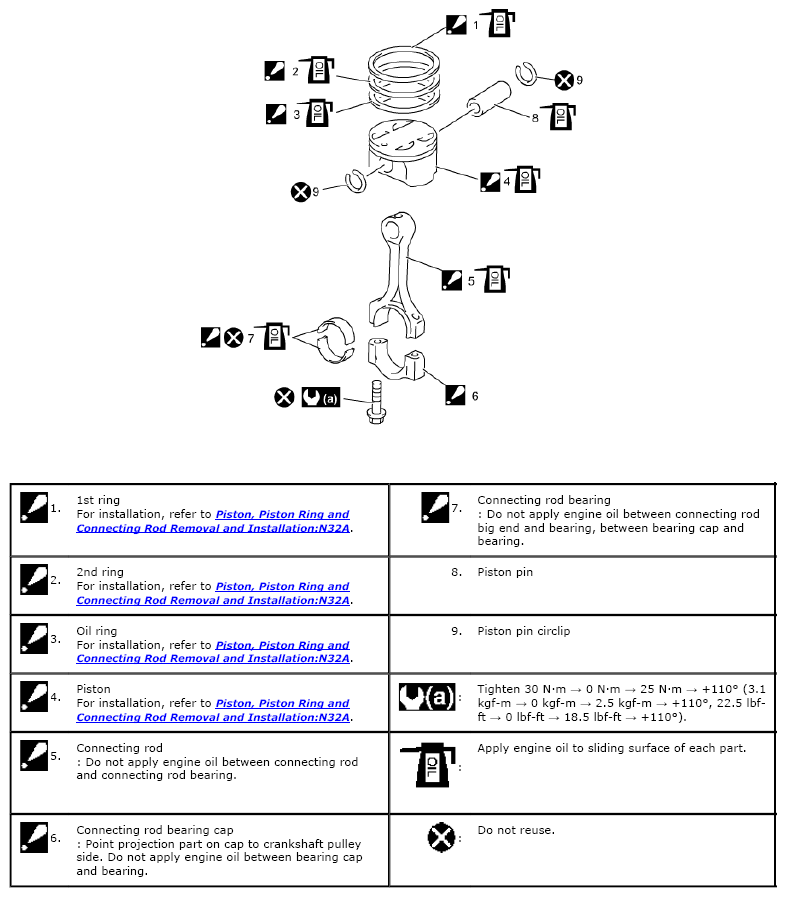

Fig 1: Piston, Piston Ring And Connecting Rod Replacement Components With Torque Specifications
G06493134Courtesy of SUZUKI OF AMERICA CORP.

Removal and Installation figure callout references:

1) - 4): PISTON, PISTON RING AND CONNECTING ROD REMOVAL AND INSTALLATION
