OCV Removal and Installation: Installation
WARNING: This page is about a different variant/trim than selected.
Reverse removal procedure for installation noting the following.
- Tighten OCV bolt to specified torque.
Tightening torque

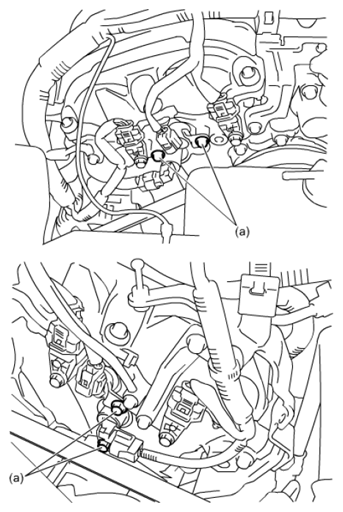

OCV bolt (a): 12 N.m (1.2 kg-m, 9.0 lbf-ft)
- Check to ensure that all removed parts are back in place.
- Finally, start engine and check for engine oil leaks.
