General Information

WARNING: This page is about a different variant/trim than selected.

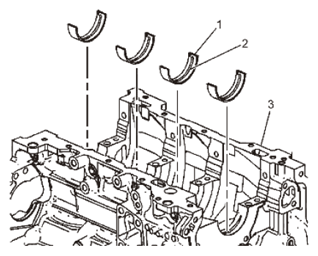

Upper half of bearing (1) has oil groove (2) as shown in figure.
Install this half with oil groove to cylinder block (3).
Lower half of bearing does not have an oil groove.

Fig 1: Identifying Bearing And Cylinder Block
Courtesy of SUZUKI OF AMERICA CORP.
