Intake Manifold and Throttle Body Components

WARNING: This page is about a different variant/trim than selected.

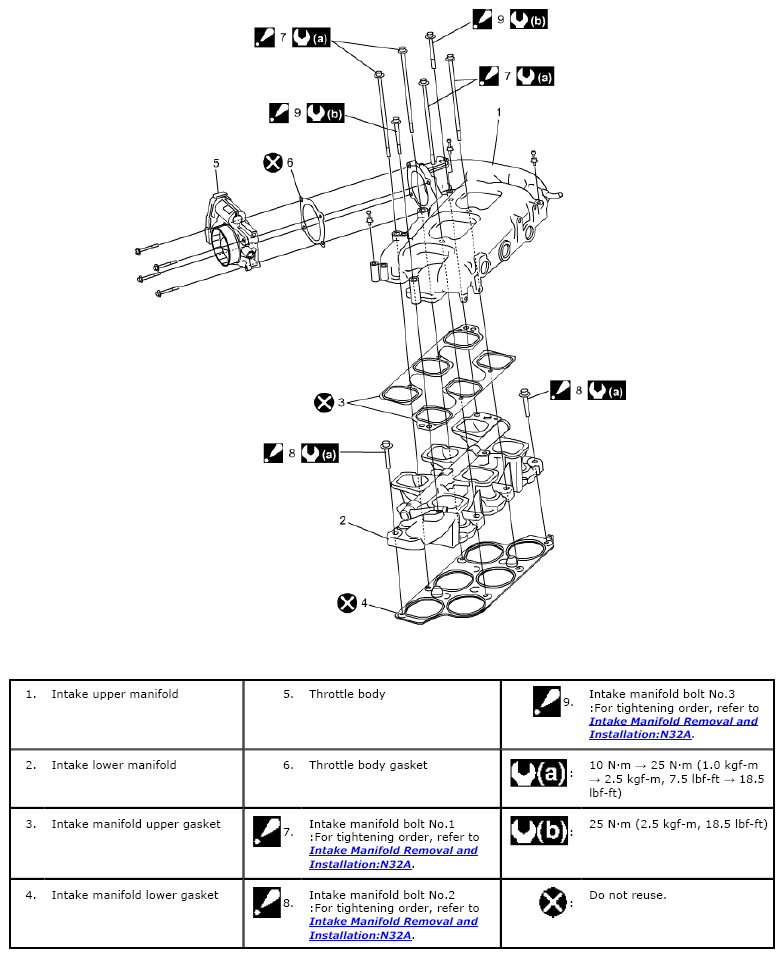

Fig 1: Exploded View Of Intake Manifold And Throttle Body With Torque Specifications
G06492938Courtesy of SUZUKI OF AMERICA CORP.

Tightening Order figure callout references:

7), 8), 9): INTAKE MANIFOLD REMOVAL AND INSTALLATION
