Cylinder Head Cover Components

WARNING: This page is about a different variant/trim than selected.
NOTE: For identification of each cylinder and bank, refer to PRECAUTION FOR IDENTIFICATION OF CYLINDER AND BANK .

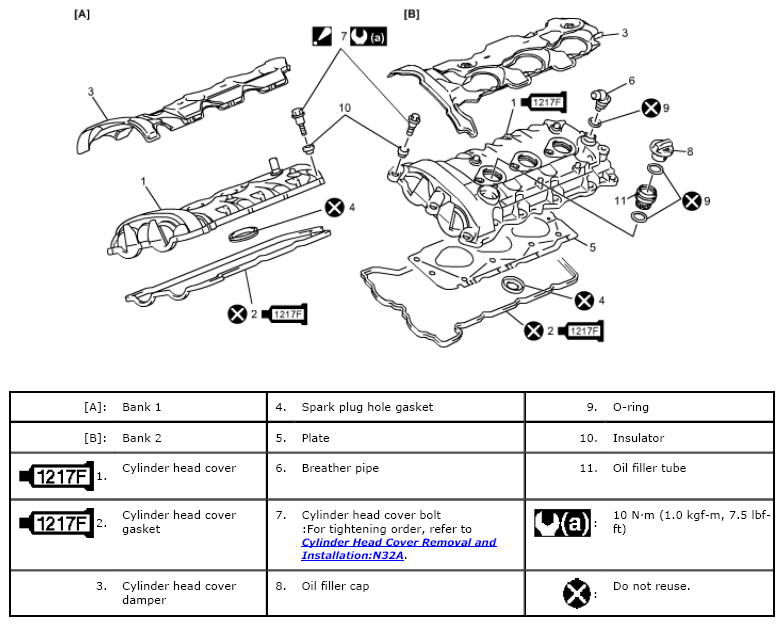

Fig 1: Exploded View Of Cylinder Head Cover With Torque Specifications
G06492946Courtesy of SUZUKI OF AMERICA CORP.

Tightening Order figure callout references:

7): CYLINDER HEAD COVER REMOVAL AND INSTALLATION
