Fuel Tank Pressure Sensor Removal and Installation: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove fuel tank from vehicle. See FUEL TANK REMOVAL AND INSTALLATION .
  2. Disconnect connector (3) from fuel tank pressure sensor.
  3. Remove fuel tank pressure sensor (1) from fuel pump assembly (2).

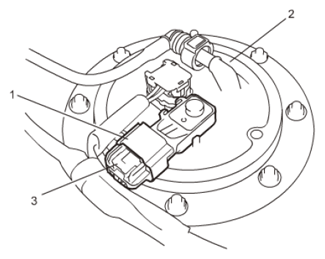

    Fig 1: Identifying Fuel Tank Pressure Sensor And Connector
    G06492576Courtesy of SUZUKI OF AMERICA CORP.
