Piston, Piston Ring and Connecting Rod Components

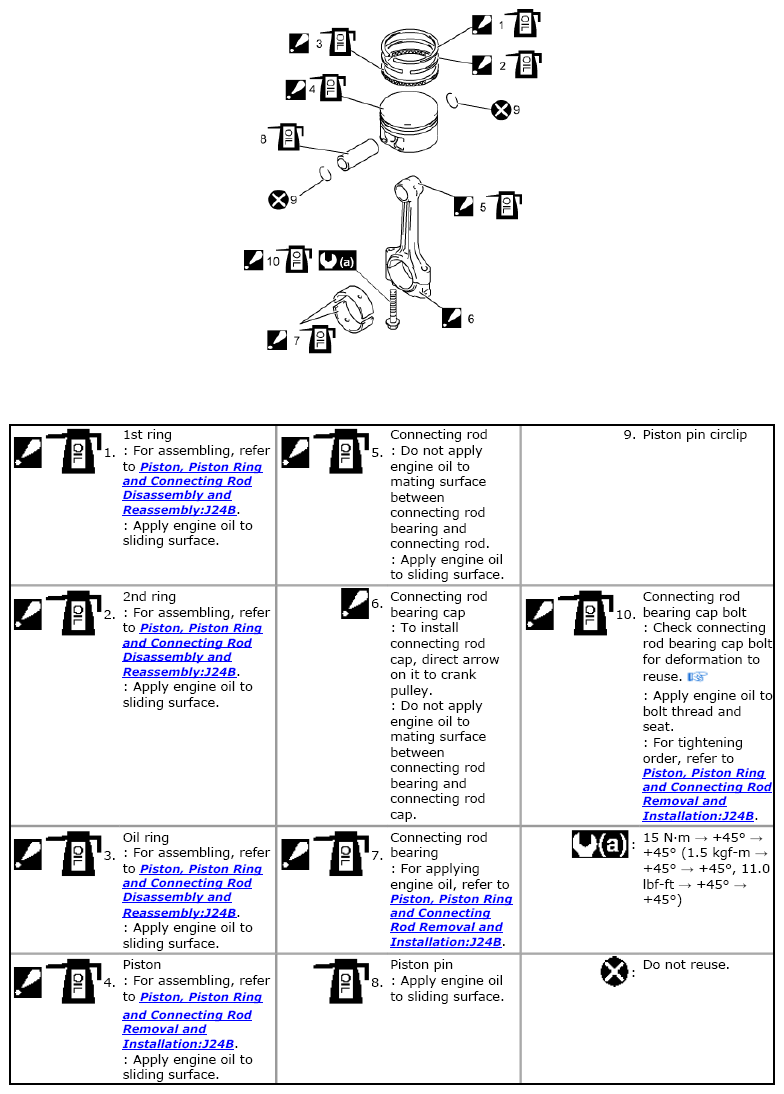

Fig 1: Piston, Piston Ring And Connecting Rod Replacement Components With Torque Specifications
G06492844Courtesy of SUZUKI OF AMERICA CORP.

Tigntening Order/Removal and Installation figure callout references:

PISTON, PISTON RING AND CONNECTING ROD REMOVAL AND INSTALLATION
