Generator Removal and Installation: Installation: N32A
Reverse removal procedure noting the following.

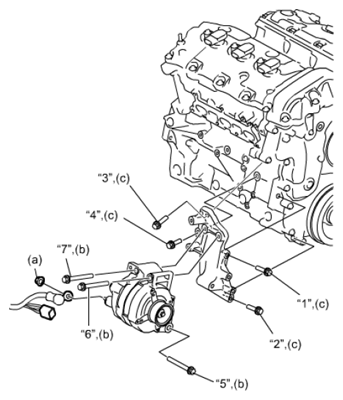

- If generator bracket was removed tighten generator bracket bolts in numerical order ("1" - "4") evenly and gradually.
Tightening torque
Generator bracket bolt* (c): 55 N.m (5.6 kg-m, 40.5 lbf-ft)
- Tighten generator bolts and "B" terminal wire nut to specified torques.
- Tighten generator bolts in numerical order ("5" - "7") evenly and gradually.
Tightening torque
Generator bolt* (b): 55 N.m (5.6 kg-m, 40.5 lbf-ft)
- Tighten "B" terminal nut to specified torque.
Tightening torque
"B" terminal nut (a): 11 N.m (1.1 kg-m, 8.5 lbf-ft)
