Generator Inspection: Stator: N32A

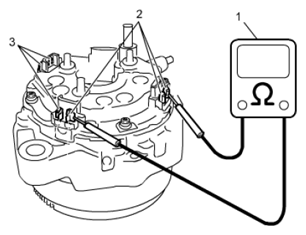

Using ohmmeter (1), check continuity between all pairs of leads (2) and continuity between all pairs of leads (3).
If there is no continuity, replace stator.

Fig 1: Checking Continuity Between Pairs Of Leads
Courtesy of SUZUKI OF AMERICA CORP.

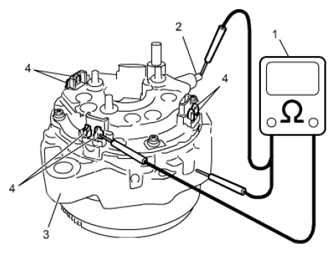

Using ohmmeter (1), check continuity between the following terminals.
- "B" terminal (2) and each coil lead (4)
- Ground (3) and each coil lead (4).
Check continuity in both direction by interchanging the probes.

Stator is normal if there is continuity only in one direction.

If there is no continuity or there is continuity in both direction, replace stator.
