Accessory Drive Belt Tension Inspection: N32A
- Disconnect negative (-) cable from battery.
- Inspect accessory drive belt for cracks, cuts, deformation, wear and cleanliness.
If any abnormality is found, replace accessory drive belt. See ACCESSORY DRIVE BELT REMOVAL AND INSTALLATION .

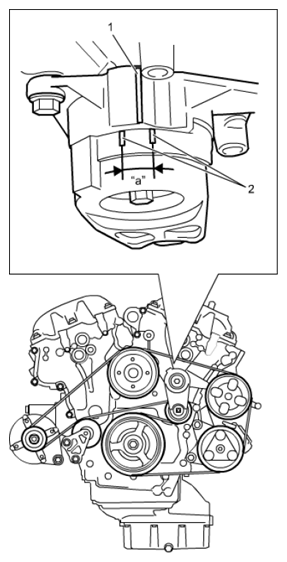

- Check that tension indicator (1) is between marks (2).
If indicator (1) is not between marks (2), replace accessory drive belt. See ACCESSORY DRIVE BELT REMOVAL AND INSTALLATION .
