Accessory Drive Belt Removal and Installation: Installation

Reference: ACCESSORY DRIVE BELT TENSION INSPECTION

1. Loosen belt tension by turning tensioner (1) clockwise.
   CAUTION: N32A:
   Do not turn tensioner pulley with a torque higher than 80 N.m (8.2 kgf-m, 59.0 lbf-ft).
   J24B:
   Do not turn tensioner pulley with a torque higher than 59 N.m (6.0 kgf-m, 43.5 lbf-ft).
2. While keeping tensioner in the loose position install accessory drive belt (2).

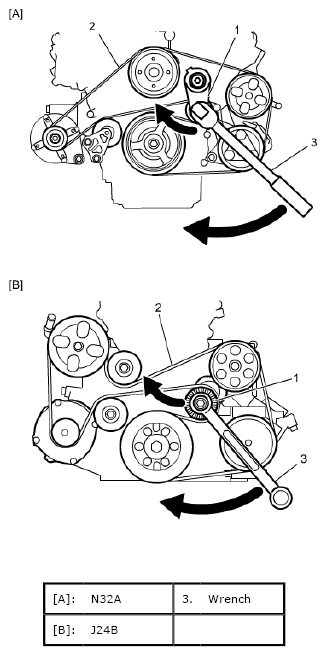

   Fig 1: Installing Accessory Drive Belt

   Courtesy of SUZUKI OF AMERICA CORP.
3. Connect negative (-) cable to battery.
