Power Supply Diagram: Notes

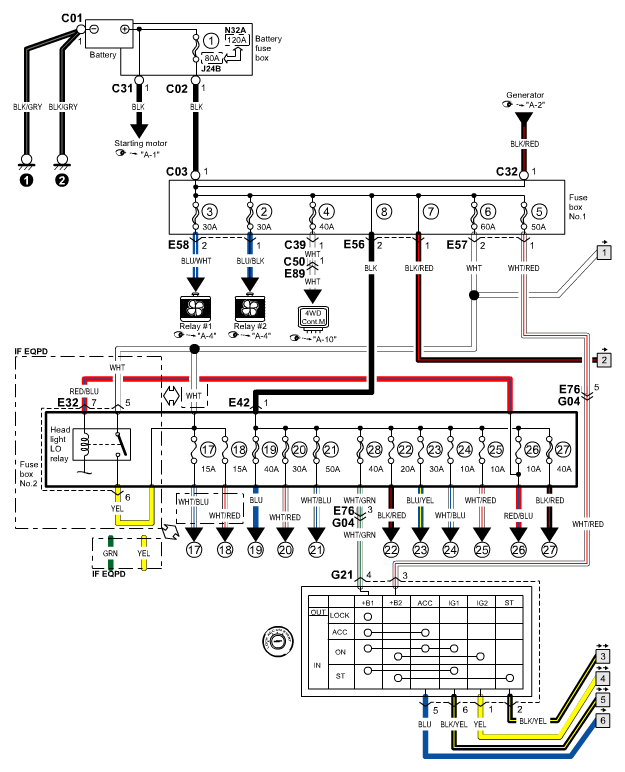

Fig 1: Power Supply Diagram (1 Of 3)
G06499637Courtesy of SUZUKI OF AMERICA CORP.

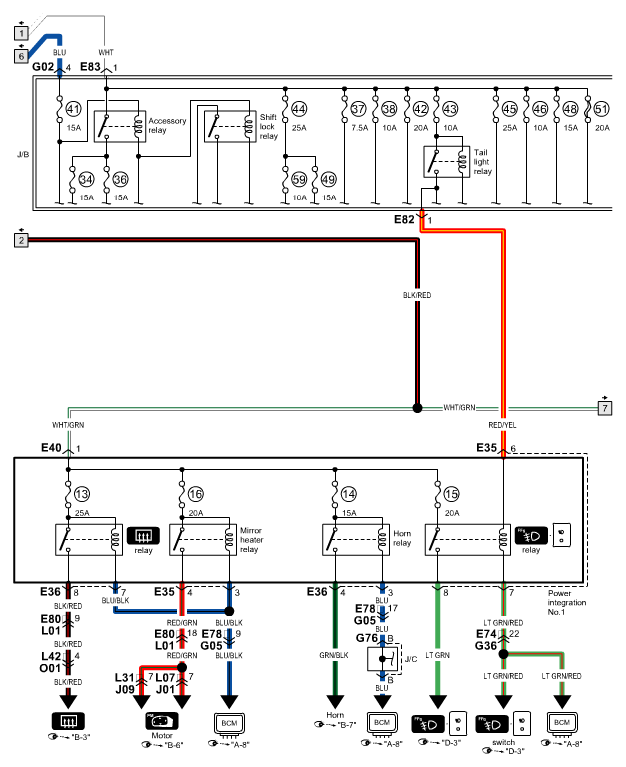

Fig 2: Power Supply Diagram (2 Of 3)
G06499638Courtesy of SUZUKI OF AMERICA CORP.

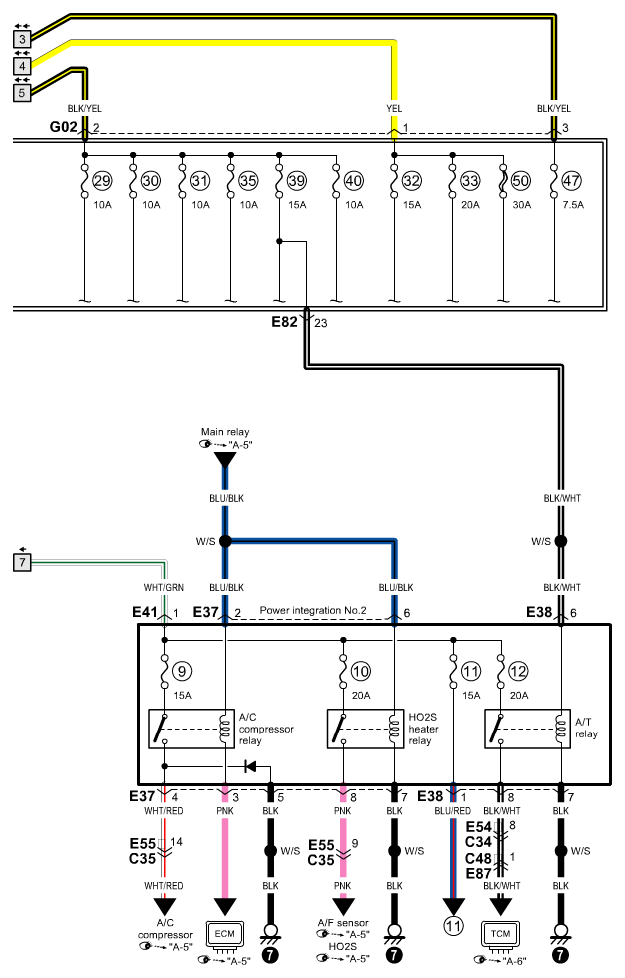

Fig 3: Power Supply Diagram (3 Of 3)
G06499639Courtesy of SUZUKI OF AMERICA CORP.
