Fuse Box No. 2 (In Power Integration No. 1, Power Integration No. 2), Relay Box

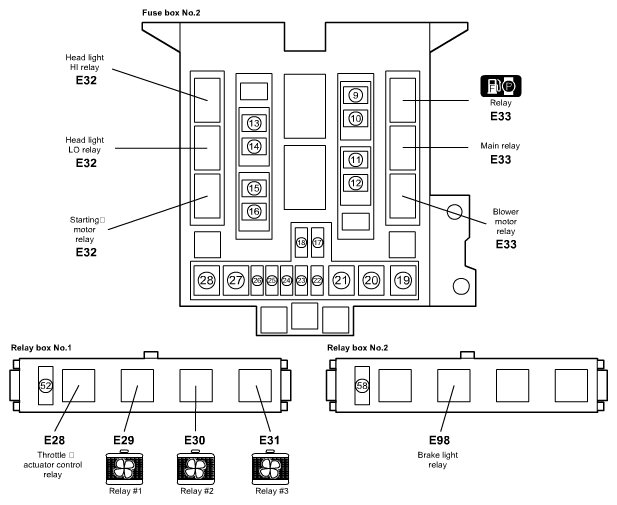

Fig 1: Identifying Power Integration Relay Fuse Box (No. 2)

Courtesy of SUZUKI OF AMERICA CORP.

FUSE REFERENCE CHART

No.	Fuse	Description on the cover	Protected circuit
(9)	15 A	CPRSR	A/C compressor relay
(10)	20 A	O2 HTR	HO2S heater relay
(11)	15 A	THR MOT	Throttle actuator control relay
(12)	20 A	AT	A/T relay
(13)	25 A	RR DEF	Rear defogger relay
(14)	15 A	HORN	Horn relay
(15)	20 A	FR FOG	Front fog light relay
(16)	20 A	MRR HTR	Mirror heater relay
(17)	15 A	H/L LO L	Head light LO (L)
			Head light LO relay
			HID head light (L)
(18)	15 A	H/L LO R	Head light LO (R)
			Head light LO relay
			HID head light (R)
(19)	40 A	FR BLW	Blower motor relay
(20)	30 A	ABS2	ABS control module
			ESP® control module
(21)	50 A	ABS1	ABS control module
			ESP® control module
(22)	20 A	FI	Main relay
(23)	30 A	H/L CLNR	HLW motor
(24)	10 A	H/L L	Head light HI (L)
(25)	10 A	H/L R	Head light HI (R)
(26)	10 A	H/L	Head light HI relay
			Head light LO relay
(27)	40 A	ST	Starting motor relay
(28)	40 A	IGN	Ignition switch
(52)	BLANK	BLANK	BLANK
(58)	BLANK	BLANK	BLANK
