DTC C1016: Brake light Switch Circuit Failure: Wiring Diagram

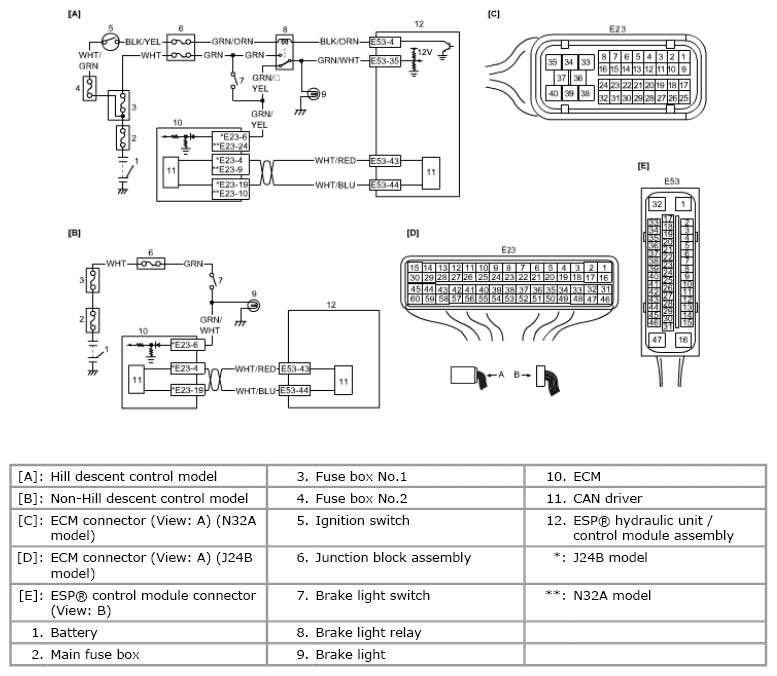

Fig 1: Brake Light Switch - Wiring Diagram
G06498505Courtesy of SUZUKI OF AMERICA CORP.
