ABS Wiring Circuit Diagram

The figure shows for vehicle without ESP®. For vehicle equipped with ESP®, refer to ELECTRONIC STABILITY PROGRAM WIRING CIRCUIT DIAGRAM .

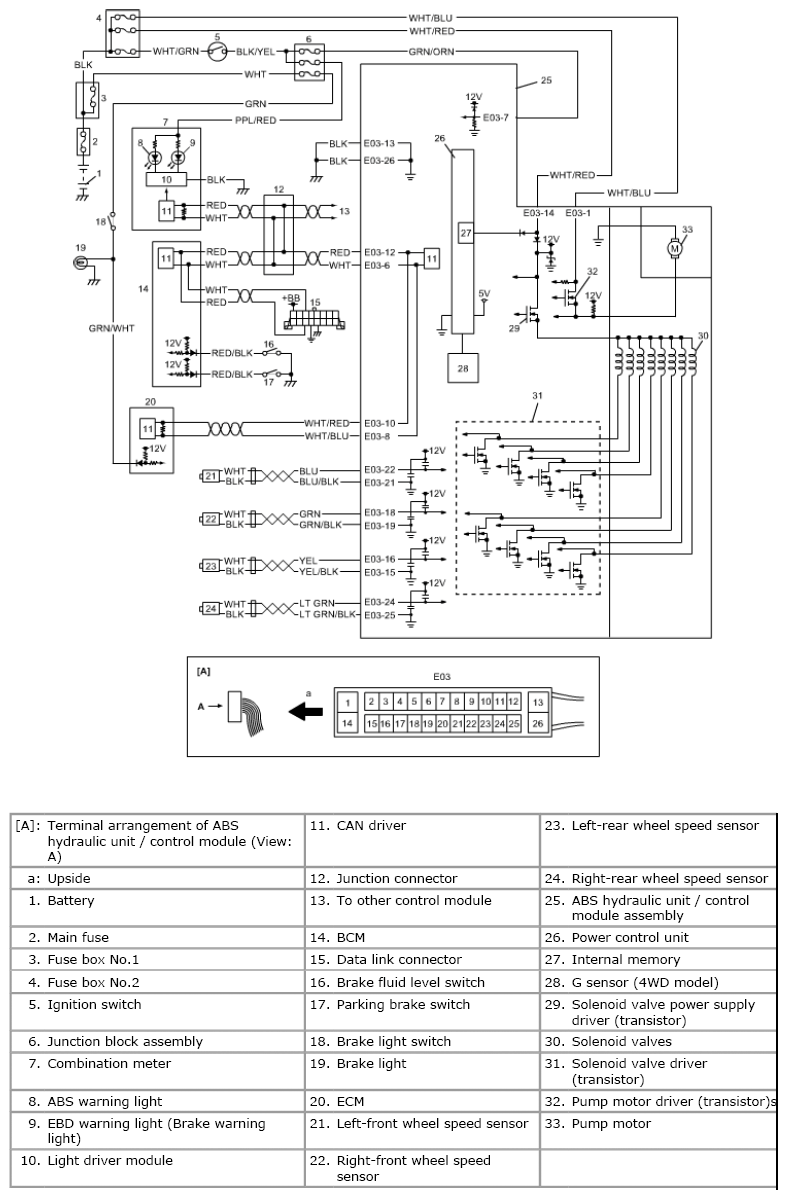

Fig 1: ABS Wiring Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP.

ABS CONNECTOR TERMINAL REFERENCE

Terminal		Wire color	Circuit
E03	1	WHT/BLU	ABS pump motor driver (Transistor)
	2	-	-
	3	-	-
	4	-	-
	5	-	-
	6	WHT	CAN communication line (low) for combination meter
	7	GRN/ORN	Ignition switch
	8	WHT/BLU	CAN communication line (low) for ECM
	9	-	-
	10	WHT/RED	CAN communication line (high) for ECM
	11	-	-
	12	RED	CAN communication line (high) for combination meter
	13	BLK	Ground
	14	WHT/RED	Solenoid valve power supply driver (Transistor)
	15	YEL/BLK	Left-rear wheel speed sensor (-)
	16	YEL	Left-rear wheel speed sensor (+)
	17	-	-
	18	GRN	Right-front wheel speed sensor (+)
	19	GRN/BLK	Right-front wheel speed sensor (-)
	20	-	-
	21	BLU/BLK	Left-front wheel speed sensor (-)
	22	BLU	Left-front wheel speed sensor (+)
	23	-	-
	24	LT GRN	Right-rear wheel speed sensor (+)
	25	LT GRN/BLK	Right-rear wheel speed sensor (-)
	26	BLK	Ground
