Front Wheel Speed Sensor Removal and Installation: Installation

Reference: FRONT AND REAR WHEEL SPEED SENSOR INSPECTION

1. Check that no foreign material is attached to sensor (1) and mating encoder (2).
2. Install it by reversing removal procedure.

   Tightening torque

   Front wheel speed sensor bolt (a): 11 N.m (1.1 kg-m, 8.5 lbf-ft)

   Front wheel speed sensor harness clamp bolt (b): 11 N.m (1.1 kg-m, 8.5 lbf-ft)

   CAUTION: Do not pull or twist wire harness more than necessary when installing front wheel speed sensor.
3. Check that there is no clearance between sensor and knuckle.

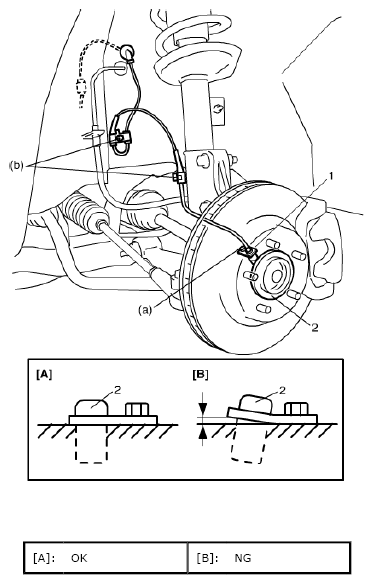

   Fig 1: Identifying Correct And Incorrect Wheel Speed Sensor Installation

   Courtesy of SUZUKI OF AMERICA CORP.
