DTC C1071: ABS (ESP®) Control Module Internal Defect: Wiring Diagram

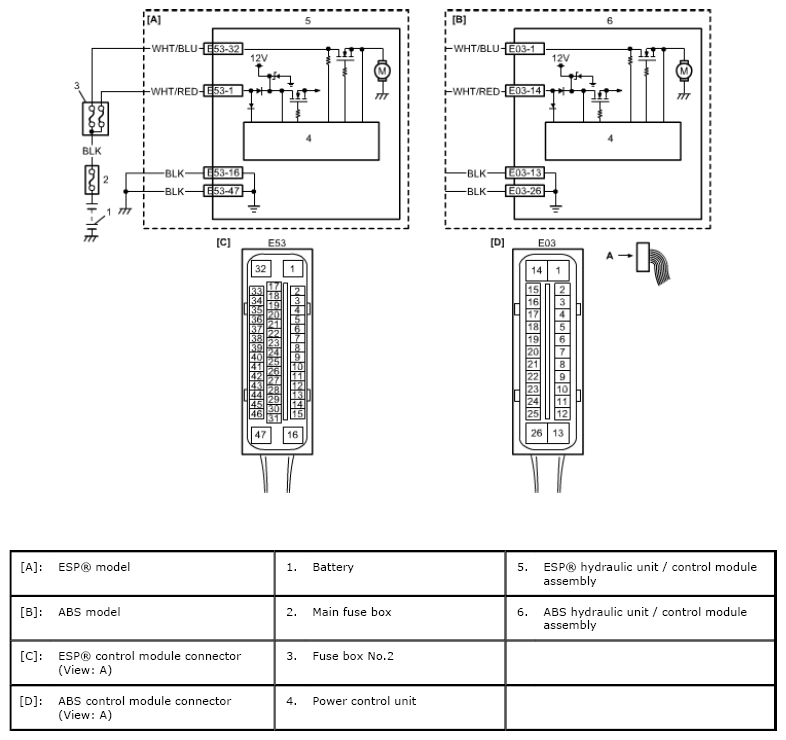

Fig 1: ABS (ESP®) Control Module Internal Defect - Wiring Diagram
G06500020Courtesy of SUZUKI OF AMERICA CORP.
