DTC C1021, C1022/C1025, C1026/C1031, C1032/C1035, C1036: Right-Front/Left-Front/Right-Rear/Left-Rear Wheel Speed Sensor Circuit or Encoder Failure: Wiring Diagram

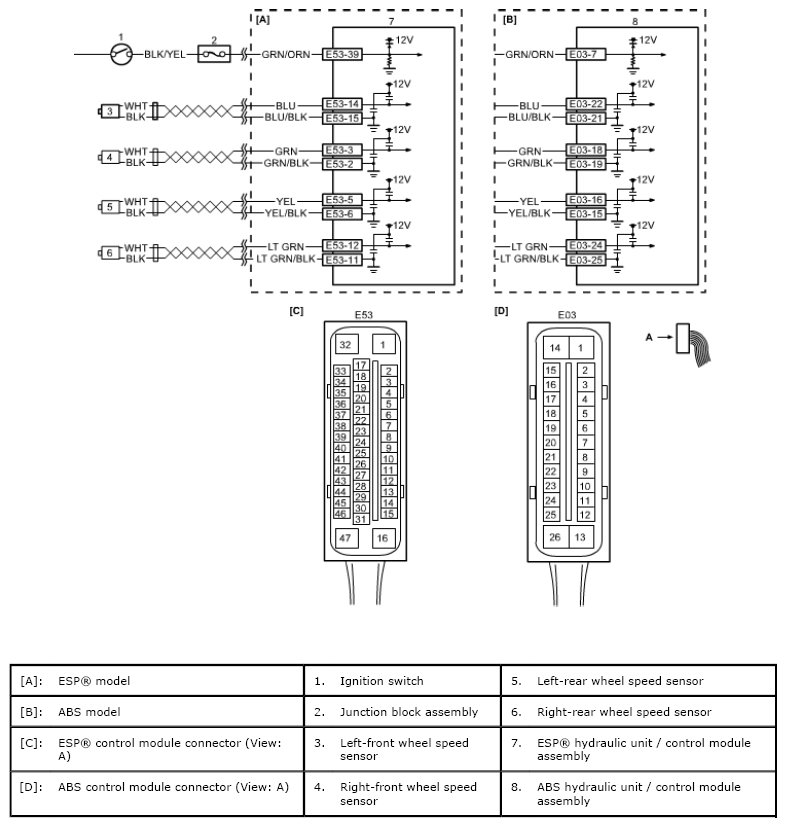

Fig 1: Left-Rear Wheel Speed Sensor Circuit Or Encoder Failure - Wiring Diagram
G06500014Courtesy of SUZUKI OF AMERICA CORP.
