Rear Seat Components

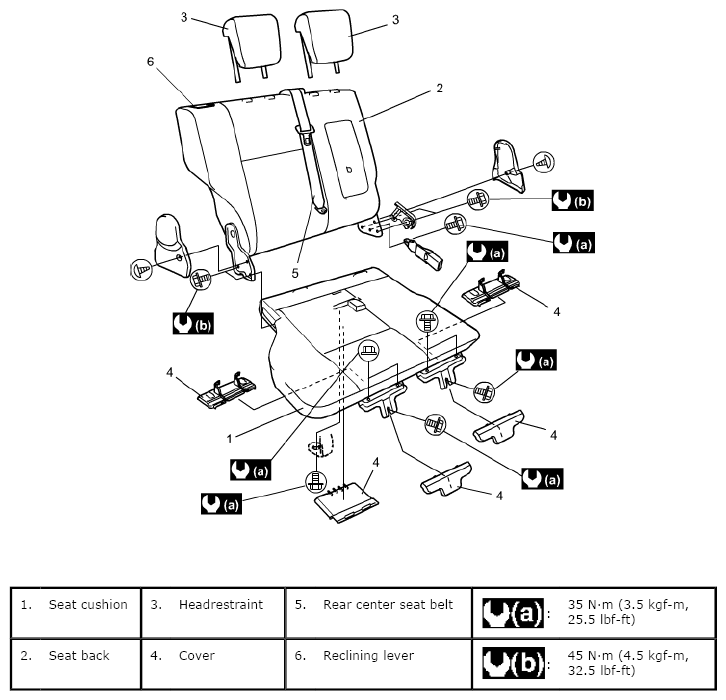

Fig 1: Identifying Rear Seat Components
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
