Washer Pump Inspection

Reference: WASHER TANK AND WASHER PUMP REMOVAL AND INSTALLATION

1. Connect battery positive (+) and negative (-) terminals to pump (+) and (-) terminals respectively.
2. Check operation of the windshield or rear washer pump inside water at illustrated.

   If pump does not operate, replace washer pump.

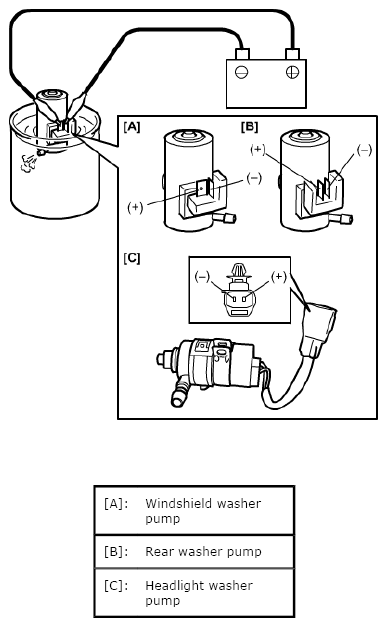

   Fig 1: Inspecting Washer Pump

   Courtesy of SUZUKI OF AMERICA CORP.
