Rear Wiper Motor Inspection

Reference: REAR WIPER REMOVAL AND INSTALLATION

1. Make a mark (1) on rear wiper motor (2) stop position as shown.
   Fig 1: Identifying Mark On Rear Wiper Motor

   Courtesy of SUZUKI OF AMERICA CORP.
2. Check rear wiper motor for operation as follows.
   • For motor operation
     1. Connect battery positive terminal to terminal "1" and its negative terminal to body ground.
     2. Check motor revolution speed as specification. If check result is not as specified, replace motor.

        Specification

        33 - 43 r/min (rpm)

        Fig 2: Connecting Battery Positive Terminal To Terminal 1 And Negative Terminal To Body Ground

        Courtesy of SUZUKI OF AMERICA CORP.
   • For automatic stop operation
     1. Connect battery positive (+) terminal to terminal "1" and its negative (-) terminal to body ground and let the motor turn.
     2. Connect terminal "2" and "3" by a jumper wire.
     3. Observe the motor (4) turns once again then stops at a specified position as shown.

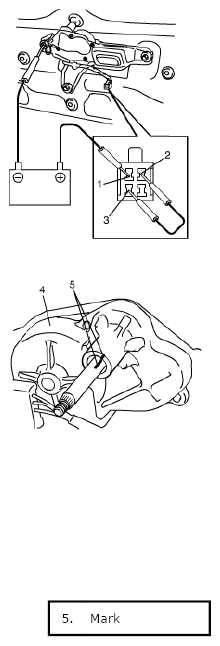

        Fig 3: Connecting Terminal 2 And 3 With Jumper Wire

        Courtesy of SUZUKI OF AMERICA CORP.
     4. Repeat Step  a. to  c. several times and check that the motor stops at the specified position every time.

        If check result is not satisfied, replace motor.
