TPMS Component Location

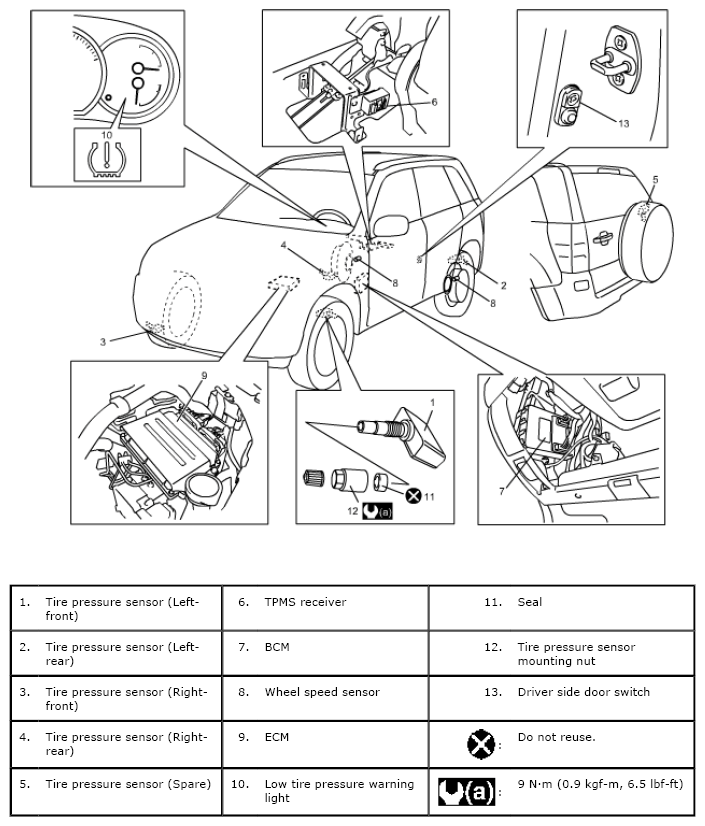

Fig 1: Identifying TPMS Component Location
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
