Discharge Headlight Bulb

  1. Check to ensure that lighting switch is at OFF position.
  2. Disconnect negative (-) cable at battery.
  3. Remove headlight housing referring to HEADLIGHT HOUSING REMOVAL AND INSTALLATION .
  4. Remove cover (1) from headlight housing by turning it counterclockwise.
  5. Remove igniter (2) from discharge headlight bulb by turning it counterclockwise.

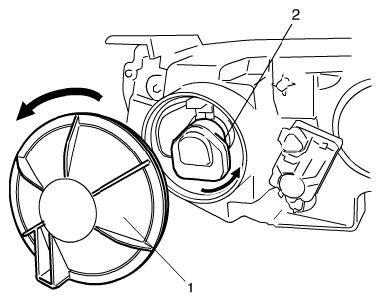

    Fig 1: Removing Cover From Headlight Housing
    G06500449Courtesy of SUZUKI OF AMERICA CORP.
  6. Replace bulb (1) from headlight housing as shown.

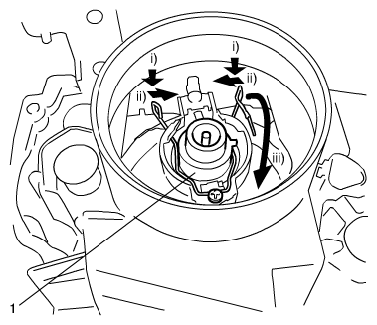

    Fig 2: Replacing Bulb From Headlight Housing
    G06500450Courtesy of SUZUKI OF AMERICA CORP.
  7. Install igniter to discharge headlight bulb by turning it clockwise.
  8. Install cover to headlight housing by turning it clockwise.
  9. Install headlight housing to vehicle body referring to HEADLIGHT HOUSING REMOVAL AND INSTALLATION .
  10. Connect negative (-) cable at battery.
  11. After installation, be sure to inspect and adjust aiming referring to HEADLIGHT AIMING ADJUSTMENT WITH SCREEN .
