Cruise Control System Wiring Diagram
>>
N32A model
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
N32A model

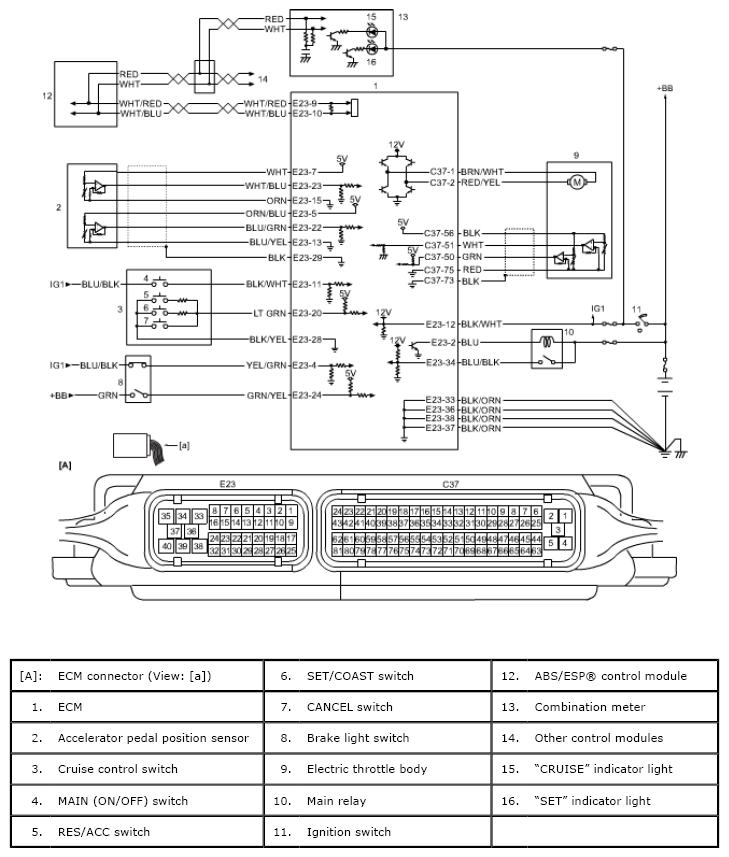

Fig 1: Cruise Control System Wiring Diagram - N32A Model
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
