Input Gear Assembly Disassembly and Reassembly
Input Gear Assembly Disassembly and ReassemblyDisassembly

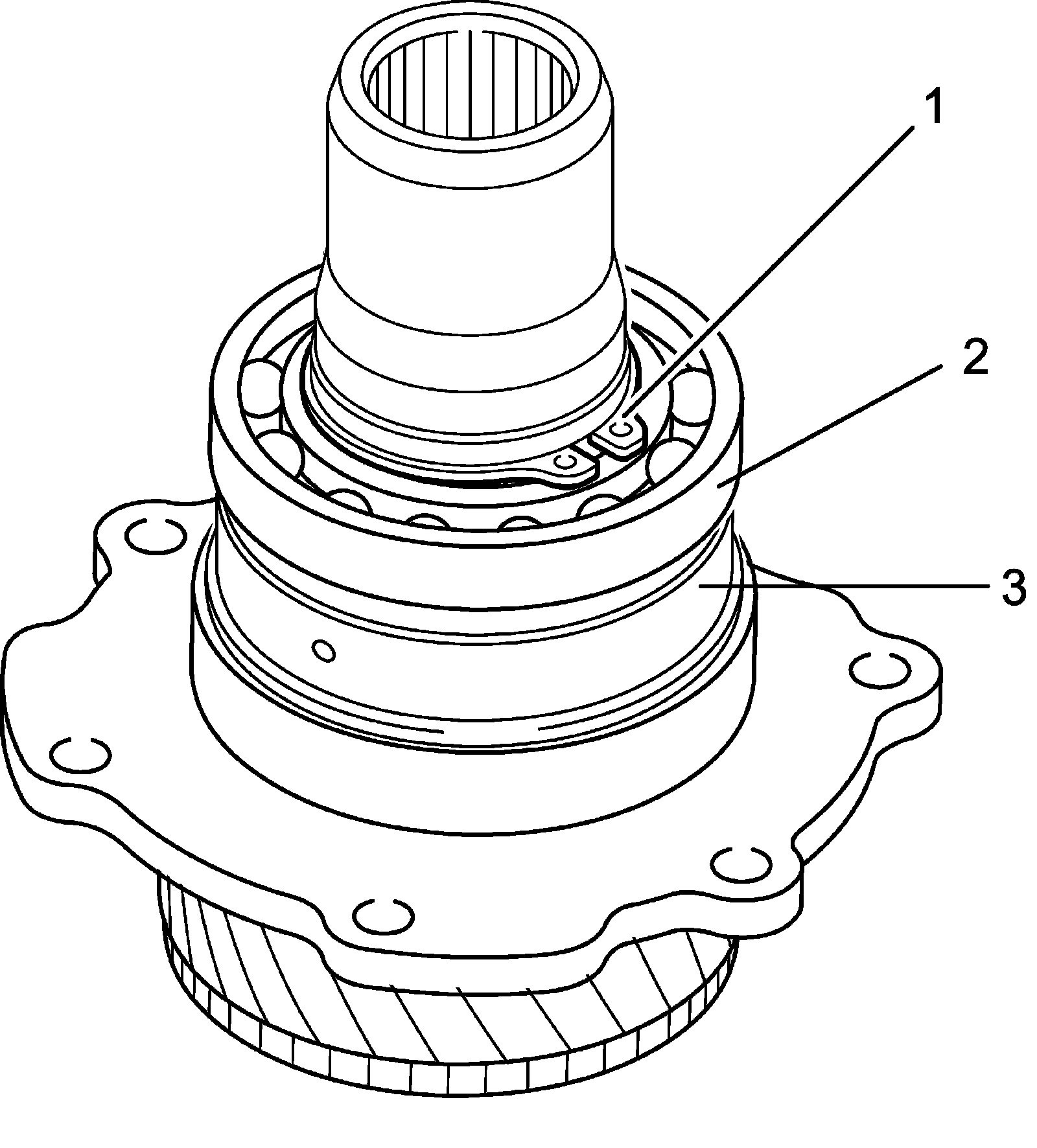

1) Remove snap ring (1) from input gear, and then remove bearing (2) and spacer (3).

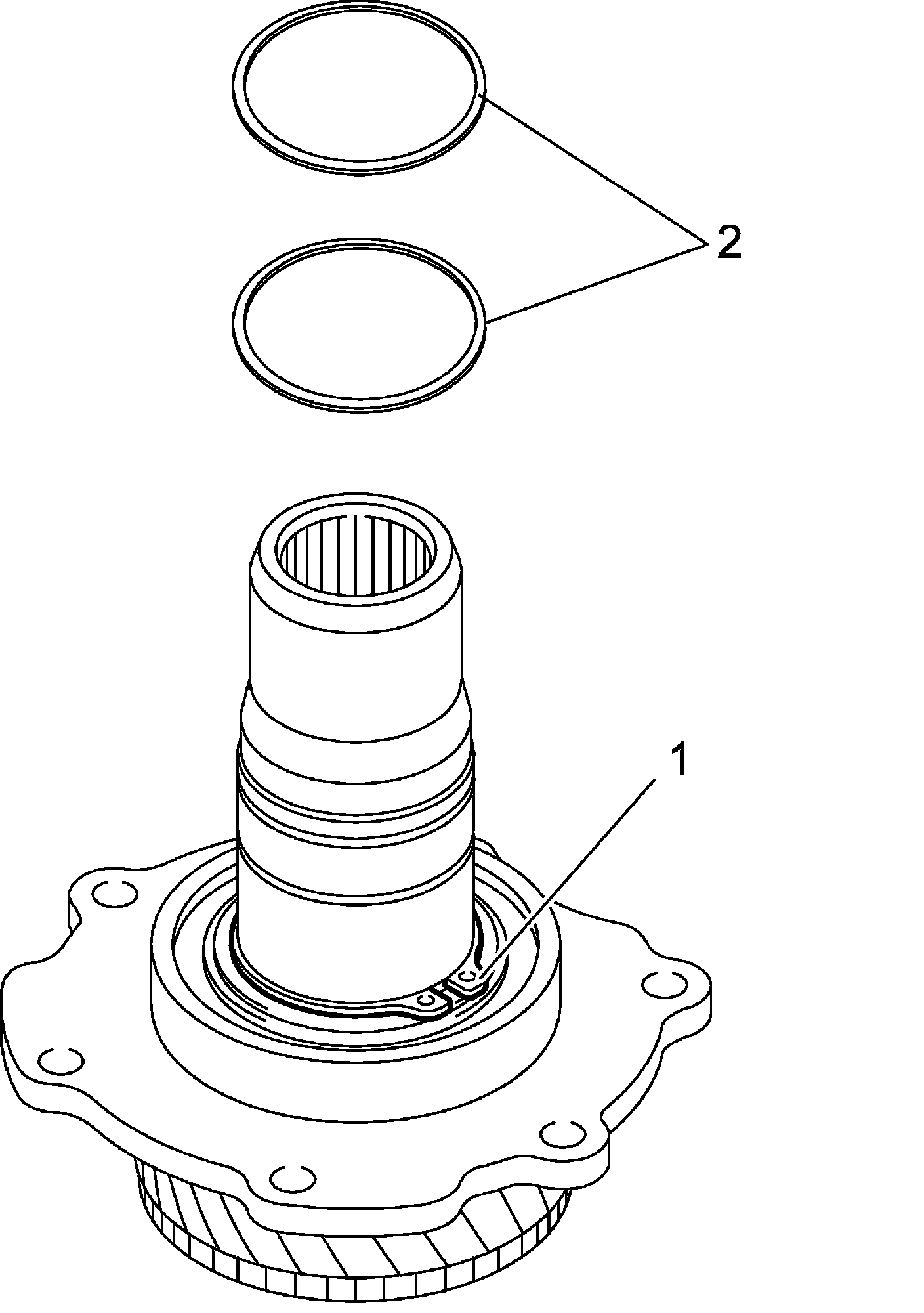

2) Remove seal rings (2) and snap ring (1).

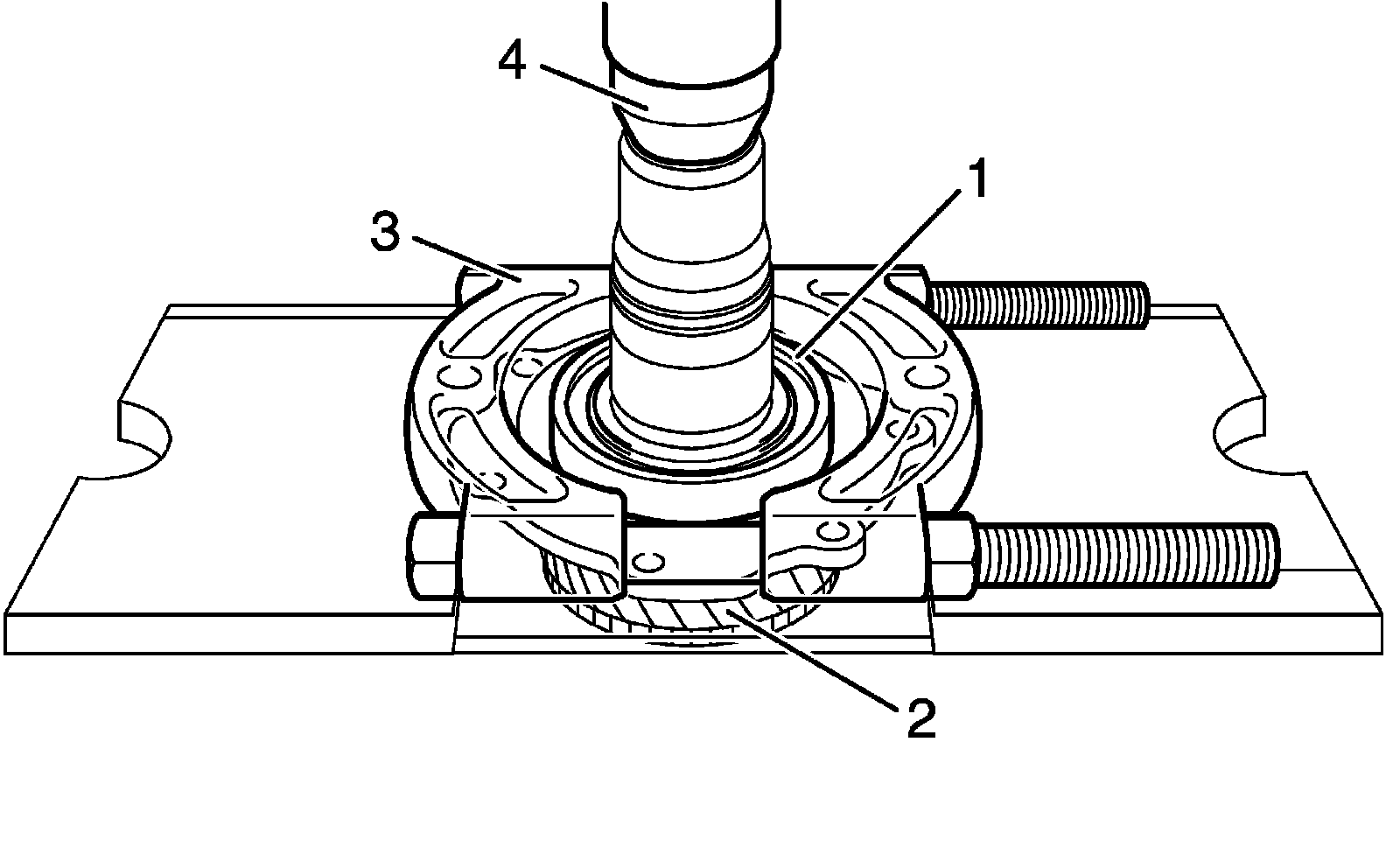

3) Remove bearing (1) from input gear (2) using bearing puller (3) and press (4), and then remove input gear plate.
Reassembly
1) Clean all components thoroughly, inspect them for any abnormality and replace with new ones as necessary.

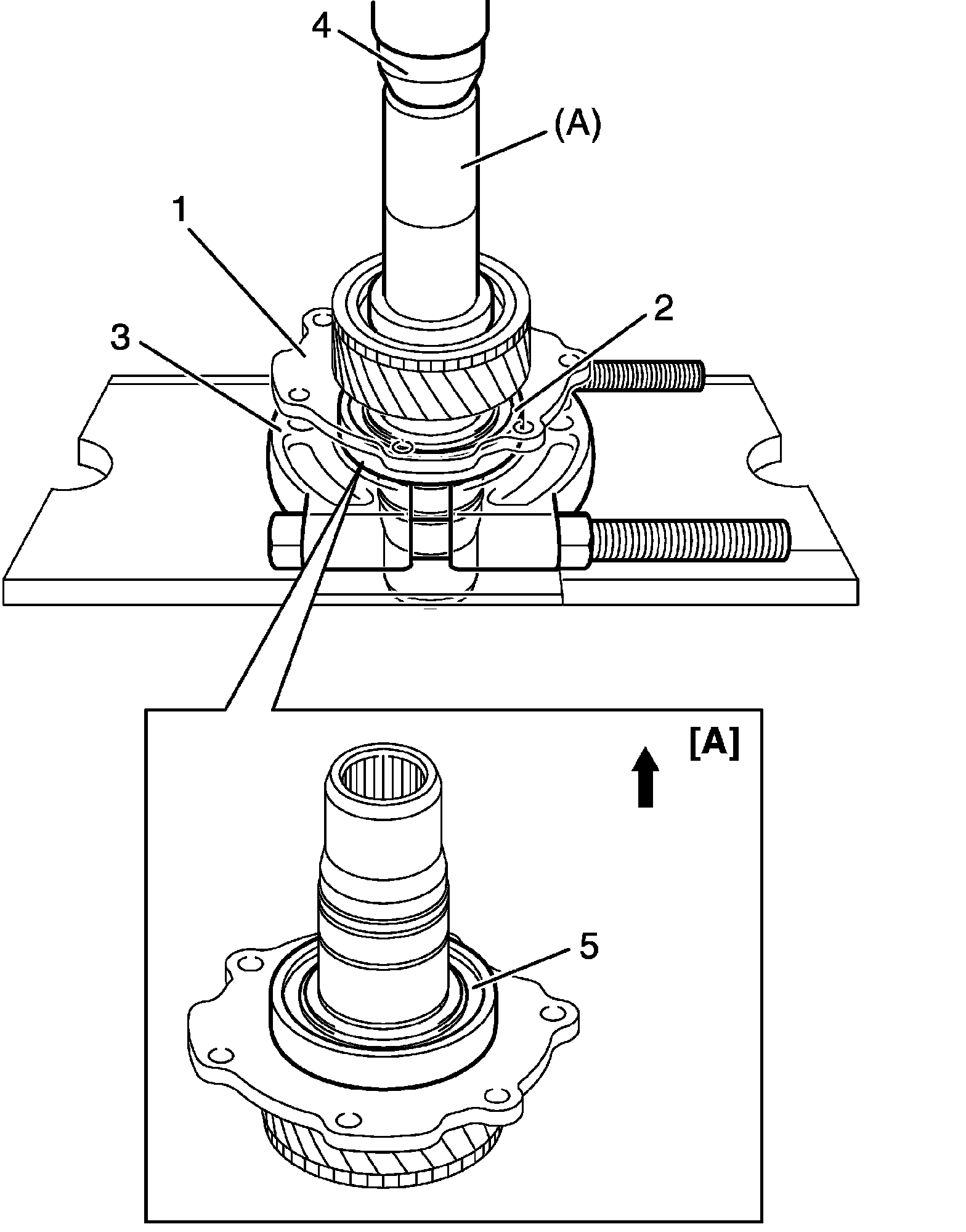

2) Install input gear plate (1), and then press-fit bearing (2) using special tool, bearing puller (3) and press (4).
NOTE:
Assemble bearing so that seal side (5) may come to the front side.
Special Tool
(A): 09913-85210

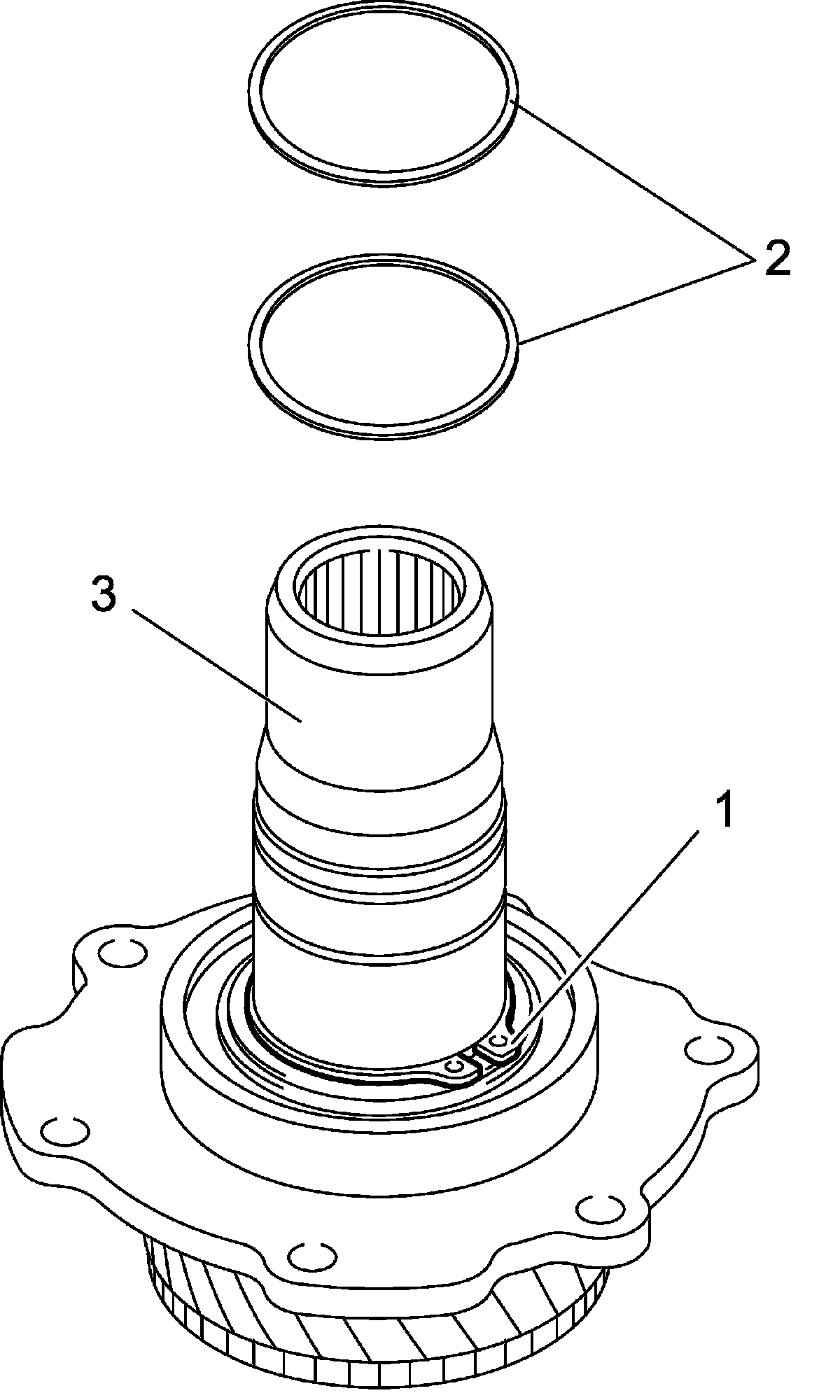

3) Install snap ring (1) and seal rings (2) to input gear (3).

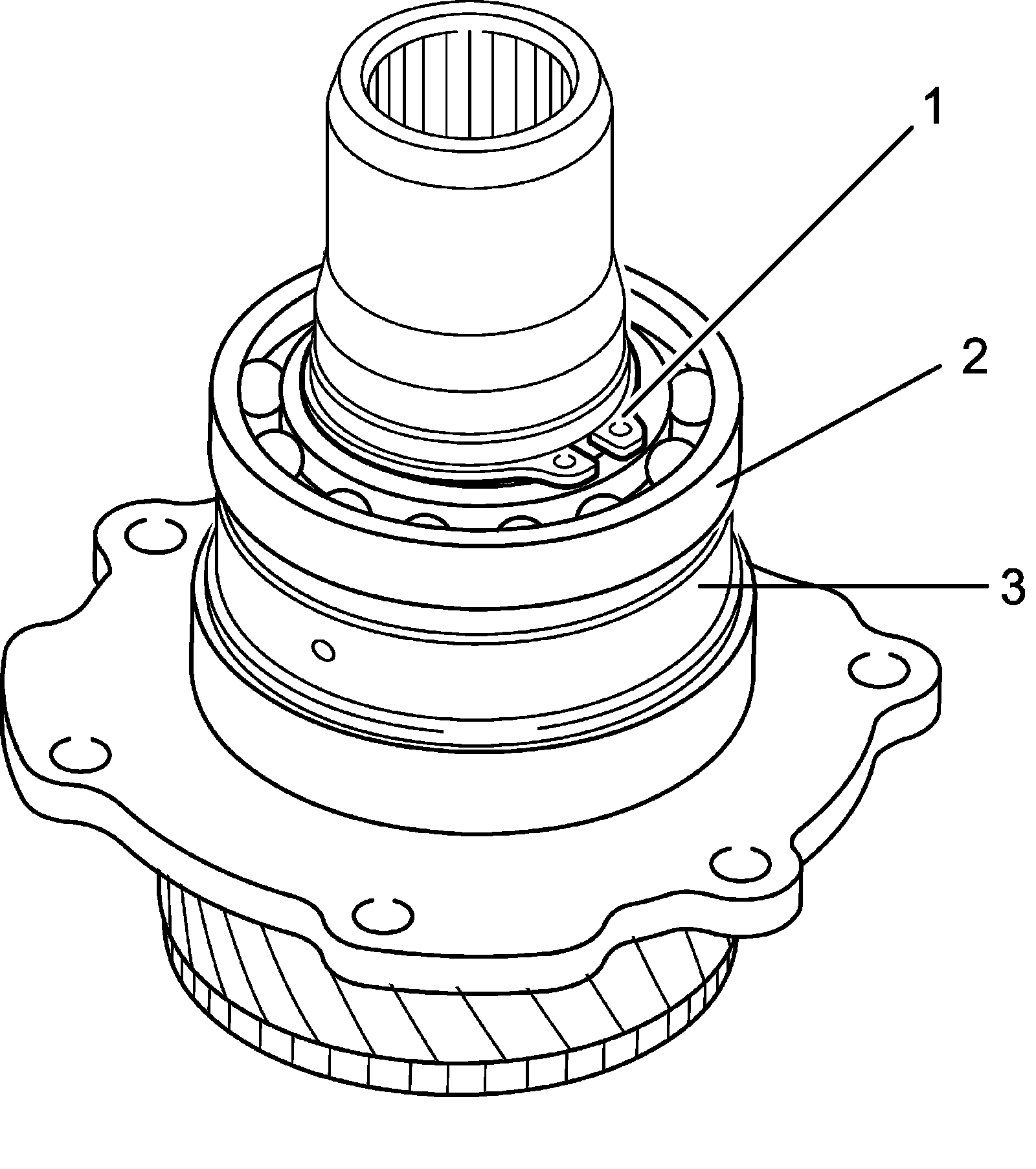

4) Install spacer (3), bearing (2) and snap ring (1).
